Cable Glands Size Chart: A Beginner’s Guide to Cable Gland Sizing by Atlas Metal

Categories Brass Conduit Fittings, Cable Cleats, Cable Gland, Cable Lugs
Cable gland size chart

Introduction

In the world of electrical installations, choosing the right cable gland size is crucial for ensuring the safety and reliability of connections. Cable glands serve as a protective mechanism where cables enter equipment, securing the cable and providing strain relief. While this might sound straightforward, the sizing of cable glands can often be complex, especially for those new to this domain. In this beginner’s guide, we’ll take you through the fundamentals of cable gland sizing, offering a comprehensive cable glands size chart and explaining how to measure and select the correct size.

Atlas Metal, a leader among cable gland manufacturers in India, has crafted this guide to help both novice and experienced users understand and choose the right cable gland for their needs. Whether you’re looking for specific types of cable glands or need to understand the differences in size, this guide will equip you with all the essential information.

Cable Gland Size Chart

One of the most important tools for selecting the right cable gland is a cable glands size chart. This chart serves as a reference for matching the diameter of the cable with the appropriate gland size. It’s essential to consult this chart before purchasing to ensure a secure and safe connection.

Cable Diameter (mm) Gland Size
3.5 – 6 16mm
6 – 9 20mm
9 – 12 25mm
12 – 15 32mm
15 – 18 40mm

These are common sizes, but it’s always recommended to double-check with specific manufacturers, such as cable gland manufacturers in Jamnagar, for region-specific charts or specialized projects. The cable gland size you choose should match the cable’s outer diameter, taking into account factors such as insulation and environmental conditions.
Consulting a reliable cable glands size chart can significantly streamline the selection process and ensure the gland fits securely without causing damage to the cable or the equipment.

How to Measure Cable Glands

Measuring the correct size for a cable gland involves understanding a few key dimensions. The first measurement to note is the cable’s outer diameter. This determines the basic gland size. However, there are other measurements to consider, such as:

  1. Thread Size: This refers to the diameter of the threaded part of the gland that screws into the equipment.
  2. Entry Hole Size: The size of the hole in the equipment where the gland will be installed.
  3. Seal Length: This refers to the length of the gland that will engage with the equipment.

To measure accurately:

  • Use a caliper to measure the outer diameter of the cable.
  • Measure the hole where the gland will be installed to ensure a snug fit.
  • Cross-check these measurements with the cable gland size chart.

Measuring these components ensures that the gland fits properly, preventing issues like over-tightening, which can lead to electrical failures or equipment damage. Many cable gland suppliers provide detailed instructions, but following basic measurement guidelines will give you a solid foundation for selecting the correct gland size.

How to Check You Have the Correct Cable Gland Size

Once you’ve measured and selected the gland size using a cable gland size chart, it’s essential to verify the fit. Here’s how you can check if the size you’ve chosen is correct:

  1. Dry Fit Test: Insert the cable through the gland without fully tightening it. The cable should slide through easily, but once the gland is tightened, it should form a firm seal around the cable.
  2. Check for Strain Relief: Ensure that the gland provides adequate strain relief to protect the cable from pulling and twisting.
  3. Inspect the Seal: Once installed, check for any gaps between the gland and the cable. A good fit will have no gaps and will create a seal that prevents ingress of dust, dirt, or moisture.

If the gland is too large, it won’t provide adequate sealing, leading to potential damage. Conversely, a gland that is too small may strain the cable, causing unnecessary wear. Double-checking these factors is essential to ensuring a secure installation.

How to Choose a Cable Gland

Choosing the right cable gland involves more than just looking at a cable glands size chart. Consideration must also be given to:

  1. Material: Cable glands are typically made from brass, stainless steel, or plastic. For industrial applications, brass glands are highly recommended for their durability and corrosion resistance. Atlas Metal, a trusted cable gland manufacturer in India, specializes in high quality brass cable glands.
  2. Application: The environment where the cable gland will be installed is critical. In hazardous environments, explosion-proof glands might be necessary. In outdoor environments, glands should have IP ratings that protect against water and dust.
  3. Certifications: Ensure that the cable glands meet relevant industry standards for safety and performance. Common certifications include ATEX and IECEx for hazardous areas.

Consulting with reputable cable gland manufacturers in Jamnagar and other regions ensures you receive expert guidance for selecting the appropriate gland for your specific application.

Shop Our Selection of Cable Glands

At Atlas Metal, we offer a wide range of high-quality brass cable glands designed for various industrial applications. Our product selection includes cable glands that are meticulously engineered to meet industry standards, ensuring durability and reliability.
Whether you are looking for cable gland types and sizes for small-scale projects or specialized installations, our catalog offers a vast selection suited to your needs. As a premier cable gland supplier, we pride ourselves on offering products that provide excellent performance, reliability, and ease of installation.
To shop our full range of cable glands, visit our website and explore our collection tailored to meet diverse requirements.

Related Products

In addition to cable glands, we also offer a range of related products, including:

  1. Cable Lugs: These are essential components for securely terminating cables in electrical connections.
  2. Brass Fittings: Known for their durability and resistance to corrosion, brass fittings are used in various applications, from plumbing to electrical installations.
  3. Conduit Fittings: Designed to protect cables and wires, conduit fittings are available in a variety of sizes to suit different project requirements.

As one of the leading cable gland manufacturers in India, we ensure that all our products are crafted with precision and tested for high performance.

FAQs

A cable glands size chart is essential for ensuring you select the correct size cable gland for your installation. It helps match the outer diameter of the cable to the appropriate gland size, preventing issues like improper sealing, which can lead to equipment failure or safety hazards. Using a size chart simplifies the process of finding the right gland for your specific cable type.

For hazardous environments, it’s essential to choose a cable gland that meets stringent safety standards, such as ATEX or IECEx certification. In such cases, explosion-proof or flameproof glands are recommended. Always consult cable gland suppliers who specialize in these types of glands to ensure the product is fit for purpose. Cable gland manufacturers in India, like Atlas Metal, offer high-quality, certified cable glands suitable for hazardous areas.

Cable glands are typically made from materials like brass, stainless steel, or plastic. Brass is highly durable and corrosion-resistant, making it ideal for industrial applications. Stainless steel is recommended for environments with extreme conditions, while plastic is suitable for lighter-duty installations. Brass cable glands, offered by cable gland manufacturers in Jamnagar, are a popular choice for their durability and resistance to harsh conditions.

No, it’s crucial to select the correct gland size by referring to a cable glands size chart. Using a gland that’s “close enough” can lead to improper sealing, inadequate strain relief, or potential damage to the cable. Always ensure the gland matches the exact outer diameter of the cable for optimal safety and functionality.

When selecting cable glands, look for certifications like ATEX, IECEx, or UL. These certifications ensure that the cable gland meets specific safety and performance standards, particularly in hazardous environments. Leading cable gland manufacturers in India, such as Atlas Metal, offer certified products that guarantee durability, performance, and safety compliance in demanding industrial applications.

Cable Cleat Installation by Atlas Metal
Categories Cable Cleats

The Ultimate Guide to Cable Cleat Installation by Atlas Metal

Categories Cable Cleats

The Ultimate Guide to Cable Management with Cable Cleats by Atlas Metal

In the realm of electrical installations, ensuring the stability and safety of cables is paramount. One crucial component that aids in achieving this is the cable cleat. Designed to secure and manage cables, cable cleats play a vital role in maintaining order and safety in cable management systems.

Atlas Metal, a leading cable cleat manufacturer based in Jamnagar, India, presents this comprehensive guide on cable cleat installation. This guide will cover everything from understanding cable cleats for electrical installations to maintenance and inspection, providing you with a holistic view of the installation process.

Understanding Cable Cleats

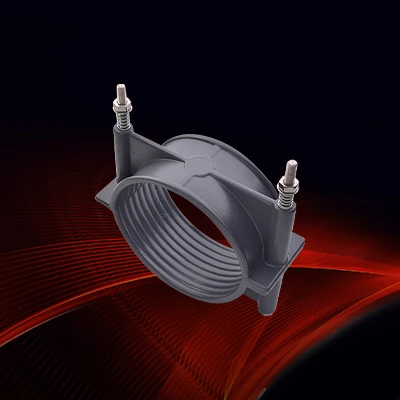

Cable cleats are devices used to support and secure cables, ensuring they remain in place and do not suffer damage due to movement or external forces. They are essential in various industries, particularly in electrical installations, where the stability of cables is critical. Cable cleats come in different sizes and materials, making it important to choose the right type of cable cleats for your specific application.

Types of Cable Cleats

Atlas Metal provides two types of cable cleats:

Aluminium Cable Cleats Two Bolts: Used for securing individual cables. They offer robust support and are suitable for various electrical installations.
Aluminium Cable Cleats Trefoil Type: Designed for three-core cables or three single-core cables arranged in a trefoil configuration. These cleats provide enhanced stability for grouped cables, reducing the risk of movement and ensuring a neat installation.

Importance of Cable Cleats

Using cable cleats in electrical installations offers several benefits:
Safety:

Prevents cables from moving and causing short circuits or electrical hazards.

Organisation:

Ensures a neat and orderly cable management system.

Durability:

Protects cables from physical damage, extending their lifespan.

Atlas Metal, being one of the leading cable cleats manufacturers in India, emphasises the importance of selecting the appropriate cable cleats for your electrical installations to ensure optimal performance and safety.

Pre-installation Considerations

Before installing cable cleats, several factors need to be considered to ensure a successful and safe installation. These pre-installation considerations include the selection of appropriate cleats, understanding the installation environment, and preparing the necessary tools and materials.

Selection of Cable Cleats

Choosing the right cable cleats involves understanding the size and type of cables being installed. Refer to a cable cleats size chart to determine the correct size and type of cleat required for your application. This ensures that the cleats will fit properly and provide adequate support for the cables.

Installation Environment

The environment in which the cable cleats will be installed plays a significant role in their performance. Factors to consider include:

Temperature:

Ensure the cleats are suitable for the operating temperature of the environment.

Exposure to Chemicals:

Select cleats that are resistant to any chemicals they may be exposed to.

Mechanical Stress:

Consider the amount of mechanical stress the cleats will need to withstand.

Tools and Materials

Prepare all necessary tools and materials before beginning the installation. This includes the cable cleats, mounting hardware, and any additional equipment required for the installation. Ensuring you have everything on hand will make the installation process smoother and more efficient.

Step-by-Step Installation Process

Installing cable cleats involves a series of steps that must be followed carefully to ensure a secure and effective installation. Here is a step-by-step guide to help you through the process.

Step 1: Planning the Installation

Begin by planning the layout of the cables and cleats. Determine the spacing and placement of the cleats along the cable route. Proper planning will ensure that the cables are adequately supported and organised.

Step 2: Marking the Mounting Points

Mark the points where the cable cleats will be mounted. Ensure the spacing between the cleats is consistent and follows the recommendations provided in the cable cleats size chart. Accurate marking will help in achieving a uniform and professional installation.

Step 3: Installing the Cable Cleats

Install the cable cleats at the marked points. Secure them using the appropriate mounting hardware, ensuring they are tightly fastened. It is crucial to use the right type of screws or bolts to avoid any movement or loosening of the cleats over time.

Step 4: Securing the Cables

Place the cables in the cleats and secure them firmly. Ensure that the cables are not twisted or bent excessively, as this can cause damage. The cleats should hold the cables snugly without applying excessive pressure that could damage the insulation.

Step 5: Final Inspection

After installing the cable cleats and securing the cables, conduct a final inspection to ensure everything is in place and properly secured. Check for any loose hardware or improperly positioned cables.

Common Installation Mistakes to Avoid

Even with careful planning, mistakes can occur during the installation of cable cleats. Being aware of these common mistakes can help you avoid them and ensure a successful installation.

Incorrect Cleat Selection

Choosing the wrong type or size of cable cleats is a common mistake. Always refer to a cable cleats size chart and consider the specific requirements of your installation to select the appropriate cleats.

Improper Spacing

Inconsistent or improper spacing between cable cleats can lead to inadequate support for the cables. Follow the manufacturer’s recommendations for spacing to ensure optimal performance.

Inadequate Securing of Cables

Failing to secure the cables properly within the cleats can result in movement and potential damage. Ensure the cables are firmly secured without being overly tightened.

Ignoring Environmental Factors

Not considering the environmental factors, such as temperature and exposure to chemicals, can compromise the performance of the cable cleats. Always select cleats that are suitable for the specific environment of your installation.

Installation Tips and Best Practices

Following best practices during the installation of cable cleats can enhance the efficiency and safety of your cable management system. Here are some tips to keep in mind.

Use Quality Cleats

Invest in high-quality cable cleats from reputable cable cleats manufacturers in India, like Atlas Metal. Quality cleats ensure better performance and longevity.

Regular Maintenance

Regularly inspect and maintain the installed cable cleats to ensure they remain in good condition. This includes checking for any signs of wear or damage and replacing any faulty cleats promptly.

Proper Documentation

Keep detailed records of the installation process, including the types of cleats used, their placement, and any maintenance performed. This documentation can be valuable for future reference and maintenance.

Training and Awareness

Ensure that all personnel involved in the installation are properly trained and aware of the best practices and safety protocols. This reduces the risk of errors and enhances the overall quality of the installation.

Maintenance and Inspection of Installed Cable Cleats

Proper maintenance and regular inspection of installed cable cleats are crucial for ensuring the longevity and reliability of your cable management system. Here are some guidelines for maintaining and inspecting cable cleats.

Regular Inspection

Conduct regular inspections of the cable cleats to check for any signs of wear, damage, or loosening. Pay particular attention to areas exposed to high mechanical stress or harsh environmental conditions.

Cleaning

Keep the cable cleats and surrounding areas clean and free from dust, dirt, and debris. Accumulation of these materials can affect the performance and longevity of the cleats.

Tightening and Adjustments

Periodically check and tighten any loose hardware to prevent movement and ensure the cleats remain securely fastened. Make any necessary adjustments to the position of the cleats to maintain proper support for the cables.

Replacement of Damaged Cleats

Replace any damaged or worn-out cable cleats promptly to maintain the integrity of the cable management system. Using damaged cleats can compromise the safety and performance of the installation.

Conclusion

Cable cleat installation is a critical aspect of cable management in electrical installations. By following the guidelines provided by Atlas Metal, you can ensure a safe, efficient, and professional installation. From understanding cable cleats to proper maintenance and inspection, every step plays a vital role in the overall success of your cable management system. Remember to choose high-quality cable cleats from reputable cable cleats manufacturers in Jamnagar, India like Atlas Metal, and adhere to best practices for optimal results. Whether you are working in metal industries in India or any other sector, proper cable cleat installation is essential for maintaining the safety and reliability of your electrical installations.

FAQs

Refer to a cable cleats size chart and consider the cable diameter and installation environment to select the appropriate cable cleats for electrical installations.

Avoid incorrect cleat selection, improper spacing, inadequate securing of cables, and ignoring environmental factors to ensure effective cable management.

Inspect and maintain cable cleats regularly, especially in metal industries in India, to check for wear, tighten loose hardware, clean the cleats, and replace damaged ones promptly.

Cable cleats
Categories Cable Cleats

Comprehensive Guide to Cable Cleats: Types, Applications, and Installation

Categories Cable Cleats

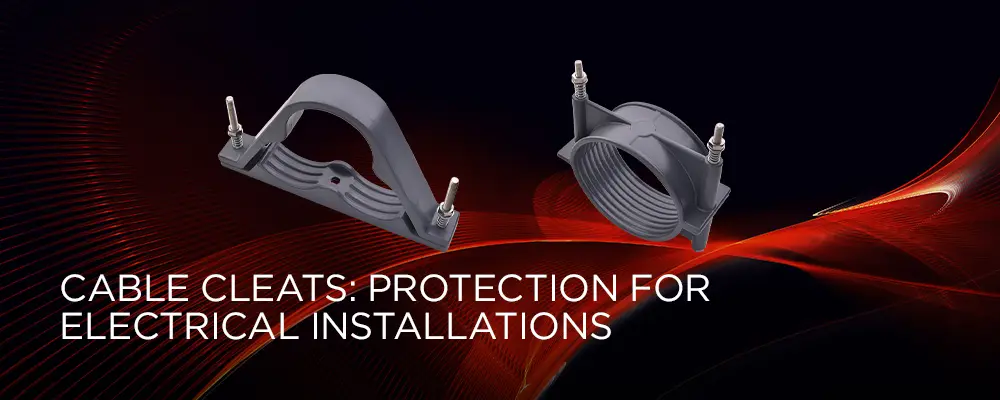

Cable cleats are indispensable components in the field of electrical installations, ensuring the safety and integrity of cable systems across various industries. As a leader in manufacturing high-quality cable cleats, Atlas Metal aims to elaborate on the importance, functionality, and application of these crucial devices. This blog will serve as an essential guide to understanding everything about cable cleats – from their basic definition to detailed installation guidelines.

What are Cable Cleats?

Cable cleats are devices designed to secure electrical cables when installed and routed in various environments. They play a pivotal role in anchoring cables firmly, preventing unnecessary movement that could lead to wear and damage over time. Cable cleats are crafted from a variety of materials, each selected to provide optimal performance in specific conditions, including thermal expansion, electromagnetic forces, and environmental factors. By ensuring that cables are fixed securely, cable cleats help maintain the structural integrity of both the cables and the installation itself.

Functions of Cable Cleats

The primary function of cable cleats is to restrain cables, ensuring they remain aligned and fixed in place, which helps in managing and organising multiple cables and reducing maintenance needs. They protect cables from mechanical stress and prevent tangling, which can lead to electrical faults or fires. In environments where cables are exposed to wind or seismic activity, cable cleats provide an extra layer of security, ensuring the cables can withstand these conditions without any adverse effects.

Cable cleats are devices designed to secure electrical cables when installed and routed in various environments. They play a pivotal role in anchoring cables firmly, preventing unnecessary movement that could lead to wear and damage over time. Cable cleats are crafted from a variety of materials, each selected to provide optimal performance in specific conditions, including thermal expansion, electromagnetic forces, and environmental factors. By ensuring that cables are fixed securely, cable cleats help maintain the structural integrity of both the cables and the installation itself.

Types of Cable Cleats

Cable cleats come in various types, each designed to cater to specific requirements and environments.

Single Cable Cleats are used for individual cable installations, providing stability and protection against axial and lateral movement.

Trefoil Cable Cleats are designed for three-phase power cables, where three cables are grouped together; they maintain the triangular formation.

Aluminium Cable Cleats are lightweight and corrosion-resistant, suitable for indoor and outdoor applications.

Stainless Steel Cable Cleats are known for their durability and strength, ideal for harsh environments and heavy-duty applications.

Nylon Cable Cleats are non-conductive and lightweight, suitable for low-voltage applications and areas where corrosion is a concern.

Hybrid Cable Cleats combine the benefits of different materials, offering a versatile solution for various installation requirements.

Materials for cable cleats range from stainless steel and aluminium to plastic and polymer composites, each offering different benefits in terms of strength, resistance, and environmental adaptability. Atlas Metal, one of the leading cable gland manufacturers in India, also produces quality cable cleats. It has helped Atlas establish itself as a renowned cable cleats manufacturer in Jamnagar India.

Factors to Keep in Mind While Buying Cable Cleats

When selecting cable cleats, several factors should be considered to ensure optimal performance and safety.

  • Firstly, assess the environmental conditions, including temperature fluctuations, exposure to chemicals, and risk of corrosion. Choose cleats made from materials that can withstand these conditions effectively.
  • Secondly, consider the type and size of cables being installed, ensuring the cleats are compatible and provide adequate support. Additionally, select cleats with appropriate certifications for compliance with safety standards.
  • Lastly, evaluate the forces that cables may encounter, such as vibration or wind loads, and choose cable cleats designed to withstand these stresses.

Applications of Cable Cleats

Cable cleats are utilised across a wide range of industries, including energy, telecommunications, construction, and marine sectors. They are essential in power distribution networks, both overhead and underground.

In industrial settings, cable cleats are crucial for ensuring the reliability and efficiency of electrical systems, especially where high currents are involved. Their use in renewable energy installations, such as wind turbines and solar panels, is becoming increasingly important, ensuring that all cabling is secure against variable weather conditions.

How to Install Cable Cleats?

The installation of cable cleats should be undertaken with precision to ensure maximum effectiveness. The process generally involves measuring the diameter of the cables, selecting the appropriate size and type of cleat, and then spacing the cable cleats at optimal intervals according to the cable’s weight and the installation’s environmental factors.

Conclusion

Understanding and utilising the correct type of cable cleat in electrical installations is critical from a safety perspective. Atlas Metal remains committed to providing robust and reliable cable cleats that meet the highest standards of quality and safety. We hope this guide has provided valuable insights into the selection, application, and installation of cable cleats, helping you ensure the longevity and reliability of your electrical installations.
