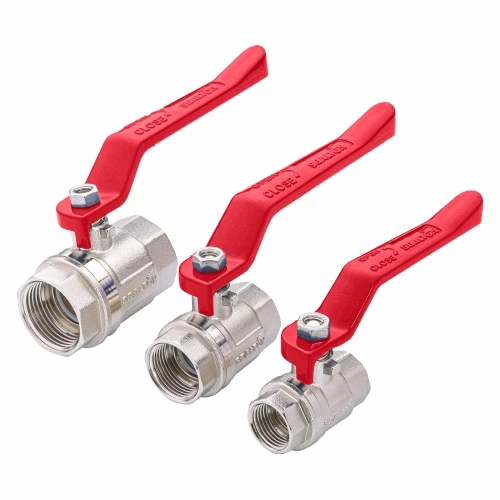

Brass Ball Valve (FxF)
Salient Features
- ✔Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- ✔Full Bore, Two Piece Design.
- ✔Quarter Turn, Lever Operated.
- ✔Provided with Forged Brass Hard Chrome Plated Ball.
- ✔Premium Quality PTFE Gland Packing and Seating.
- ✔Nickel Finish.
Test Pressure (Hydrostatic)
- ✔ Shell: 25 kg/cm2g (350 psig)
- ✔Seat: 16 kg/cm2g (225 psig)
- ✔Maximum Working Temperature: 220°C
- ✔Suitable For : Water, Oil, Air.

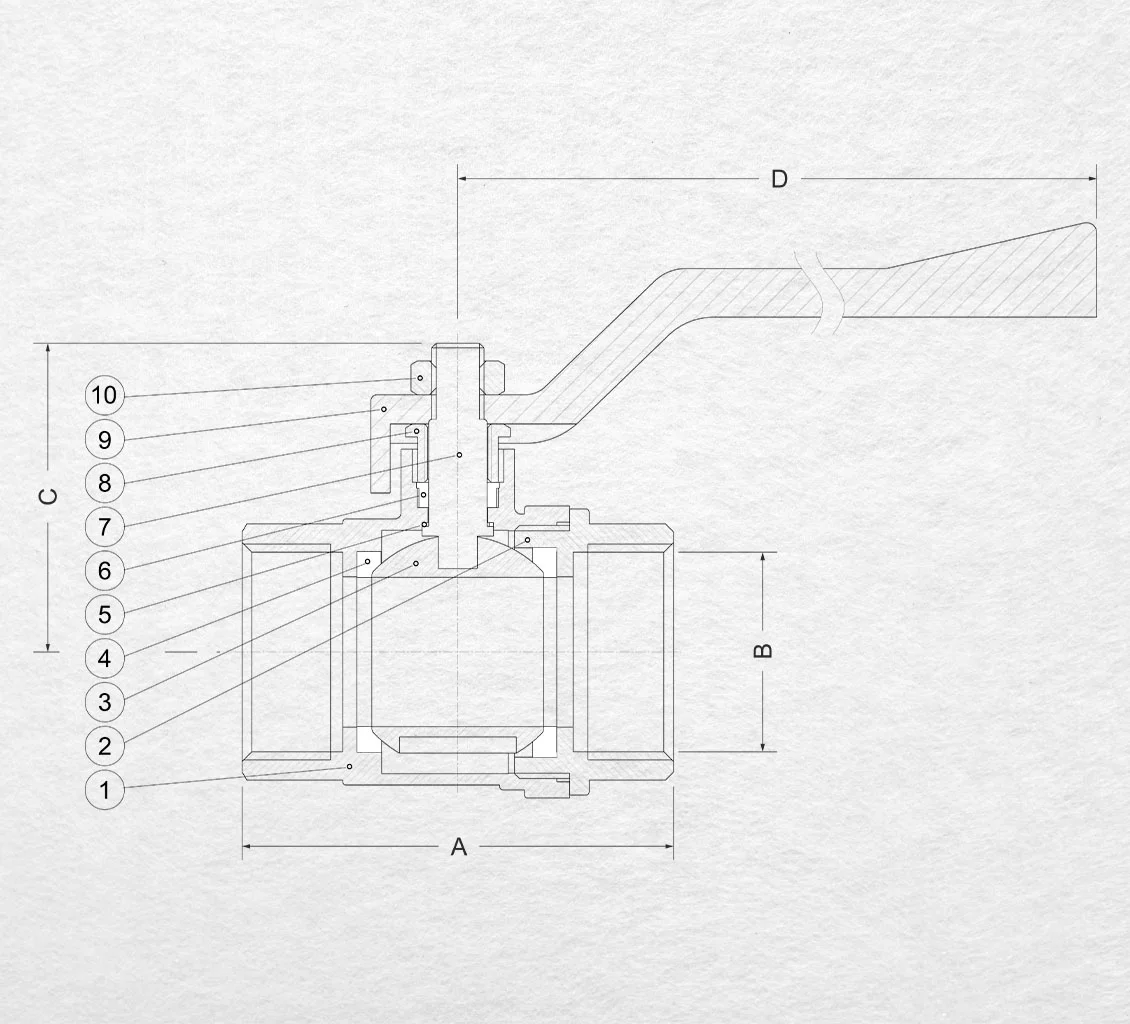

Material Specification
| Part | Name of Part | Material | Qty |
|---|---|---|---|
| 1 | Body | Forged Brass CW614N | 1 |
| 2 | Nut | Forged Brass CW614N | 1 |
| 3 | Ball | Brass CW614N | 1 |
| 4 | Seat Ring | PTFE | 2 |
| 5 | Seal Ring | PTFE | 1 |
| 6 | Thrust Washer | PTFE | 1 |
| 7 | Stem | Brass CW614N | 1 |
| 8 | Bush | Brass CW614N | 1 |
| 9 | Handle | Aluminium Alloy (Powder Coated) | 1 |
| 10 | Locknut | Stainless Steel | 1 |
Sizes / Dimensions
| Item Code | Size | A | B | C | D |
|---|---|---|---|---|---|
| 10015FF | 1/2” (15mm) | 50 | 1/2” | 40 | 106 |
| 10020FF | 3/4” (20mm) | 58 | 3/4” | 43 | 132 |
| 10025FF | 1” (25mm) | 67 | 1” | 51 | 132 |
| 10032FF | 1.1/4” (32mm) | 76 | 1.1/4” | 65 | 166 |
| 10040FF | 1.1/2” (40mm) | 87 | 1.1/2” | 72 | 176 |
| 10050FF | 2” (50mm) | 104 | 2” | 82 | 216 |
All Dimensions are in mm
(~ ± 10mm)
