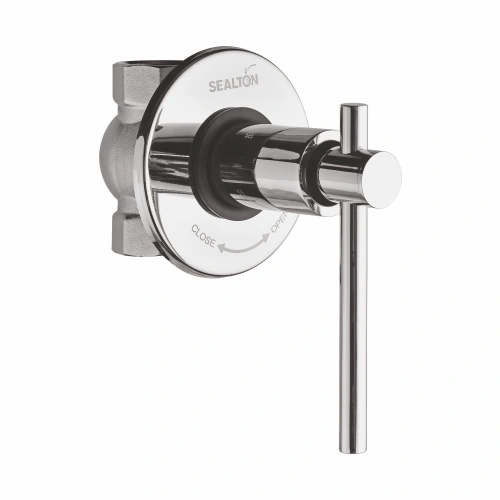

Brass Control Valve
Salient Feature
- ✔Screwed Female Ends to IS 554/BS 21/
ISO 7. - ✔These valves are most suitable for concealed flow control application
- ✔Material – Full brass forged body & upper parts fully chrome plated with handle,
- ✔Premium Quality PTFE Packing
- ✔ Working Temperature Hot and cold water
Test Pressure (Hydrostatic)
- ✔Shell: 25 kg/cm2g (350 psig)
- ✔Seat: 16 kg/cm2g (225 psig)
- ✔Maximum Working Temperature: 220°C
- ✔Suitable For: Water

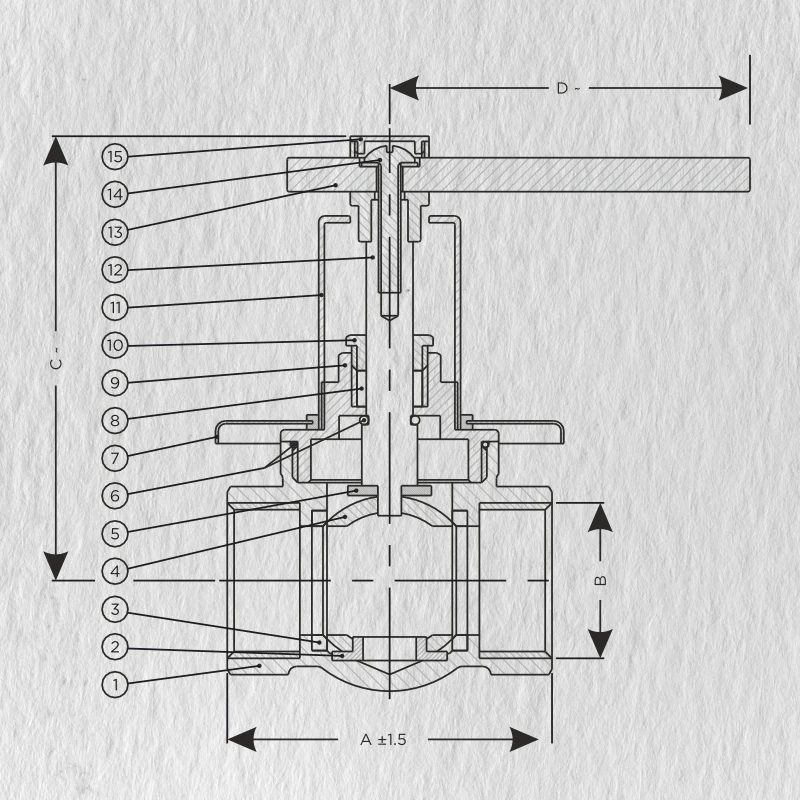

Material Specification
| Part | Name of Part | Material | Qty |
|---|---|---|---|
| 1 | Body | Forged Brass CW614N | 1 |
| 2 | Hold up Washer | NBR | 1 |
| 3 | Seat Ring | TFM | 2 |
| 4 | Ball | Brass CW614N | 1 |
| 5 | Stop Plate | Stainless Steel | 1 |
| 6 | O-Ring | NBR | 1 |
| 7 | Flange | Brass Chrome Finish | 1 |
| 8 | Seal Ring | PTFE | 1 |
| 9 | Adaptor Nut | Brass CW614N | 1 |
| 10 | Bush | Brass CW614N | 1 |
| 11 | Glassy | Brass Chrome Finish | 1 |
| 12 | Stem | Brass CW614N | 1 |
| 13 | Lever Handle | Brass Chrome Finish | 1 |
| 14 | Screw & Washer | Stainless Steel | 1 |
| 15 | Cap | Brass Chrome Finish | 1 |
Sizes & Dimensions
| Item Code | Size | A | B | C | D |
|---|---|---|---|---|---|
| 41015BCV | 1/2" (15 mm) | 54 | 1/2" | 94 | 80 |
| 41020BCV | 3/4" (20 mm) | 60 | 3/4" | 94 | 80 |
| 41025BCV | 1" (25 mm) | 70 | 1" | 94 | 80 |
All Dimensions are in mm
(~ ± 10mm)
