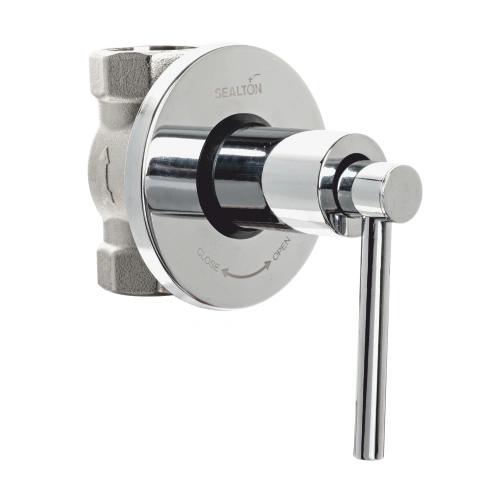

Brass Concealed Flush Valve
Salient Feature
- ✔Screwed Female Ends to
IS 554/BS 21/ISO 7. - ✔Full Turn Spindle
- ✔EPDM Rubber Seal
- ✔Material – Full brass forged body & upper parts fully chrome plated with
handle, - ✔Working Temperature – 0° to 100°
Degree C
Test Pressure (Hydrostatic)
- ✔PN 10 Pressure Rating
- ✔Maximum Working Temperature: 100°C
- ✔Suitable For: Water

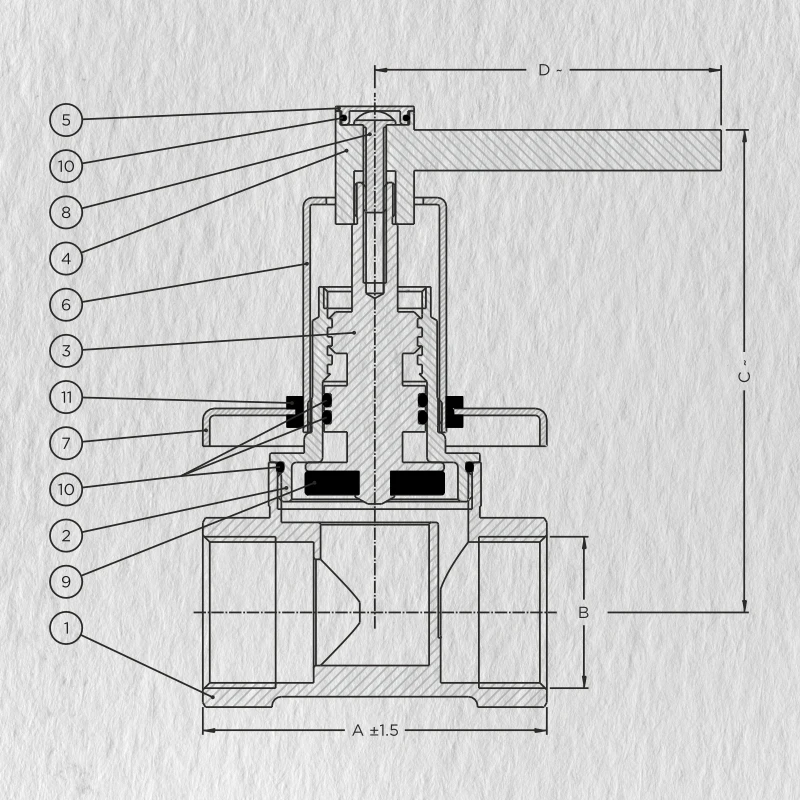

Material Specification
| Part | Name of Part | Material | Qty |
|---|---|---|---|
| 1 | Body | Forged Brass CW614N | 1 |
| 2 | Adaptor Nut | Brass CW614N | 1 |
| 3 | Spindle | Brass CW614N | 1 |
| 4 | Lever Handle | Brass CW614N | 1 |
| 5 | Cap | Brass CW614N | 1 |
| 6 | Flange | Brass Chrome Finished | 1 |
| 7 | Glassy | Brass Chrome Finished | 1 |
| 8 | Screw | Stainless Steel | 1 |
| 9 | Rubber Seal | EPDM | 1 |
| 10 | O-Ring | NBR | 3 |
| 11 | Support Rubber | NBR | 1 |
Sizes & Dimensions
| Item Code | Size | A | B | C | D |
|---|---|---|---|---|---|
| 42025CFV | 1" (25 mm) | 73 | 1" | 104 | 75 |
All Dimensions are in mm
(~ ± 10mm)
