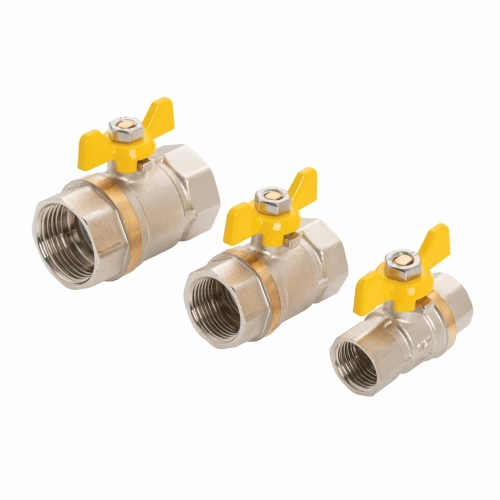

Butterfly Ball Valve
Salient Features:
- ✔Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- ✔Full Bore, Two Piece Design.
- ✔Quarter Turn, Lever Operated.
- ✔Provided with Forged Brass Hard Chrome Plated Ball.
- ✔Premium Quality PTFE Gland Packing and Seating.
- ✔Nickel Finish.
Test Pressure (Hydrostatic)
- ✔ Shell: 25 kg/cm2g (350 psig)
- ✔Seat: 16 kg/cm2g (225 psig)
- ✔Maximum Working Temperature: 220°C
- ✔Suitable For : Water, Oil, Air, Gas.
Material Specification
| Part | Name of Part | Material | Qty |
|---|---|---|---|
| 1 | Body | Forged Brass CW614N | 1 |
| 2 | Nut | Forged Brass CW614N | 1 |
| 3 | Ball | Brass CW614N | 1 |
| 4 | Seat Ring | PTFE | 2 |
| 5 | Seal Ring | PTFE | 1 |
| 6 | Thrust Washer | PTFE | 1 |
| 7 | Stem | Brass CW614N | 1 |
| 8 | Bush | Brass CW614N | 1 |
| 9 | Handle | Aluminium Alloy (Powder Coated) | 1 |
| 10 | Locknut | Stainless Steel | 1 |

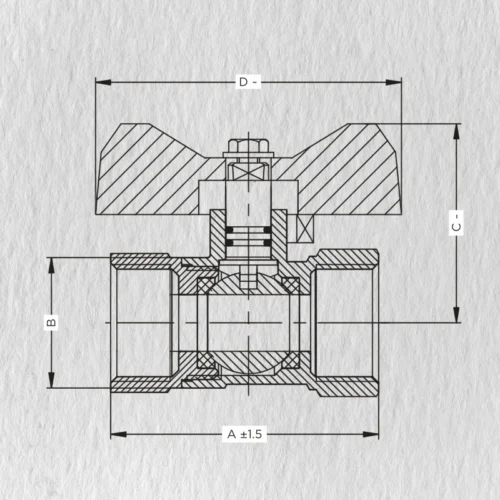

Sizes & Dimensions
| Item Code | Size | A | B | C | D |
|---|---|---|---|---|---|
| 14008FF | 1/4" (8 mm) | 47 | 1/4" | 34 | 52 |
| 14010FF | 3/8" (10 mm) | 50 | 3/8" | 35 | 52 |
| 14015FF | 1/2" (15 mm) | 54 | 1/2" | 39 | 52 |
| 14020FF | 3/4" (20 mm) | 59 | 3/4" | 51 | 52 |
| 14025FF | 1" (25 mm) | 67 | 1" | 55 | 52 |
All Dimensions are in mm
(~ ± 10mm)
