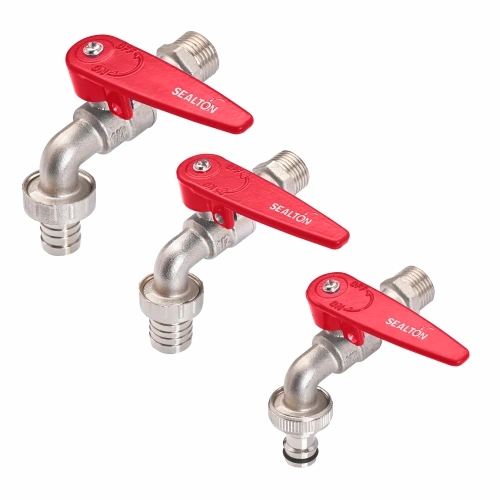

Brass BIB Cock
Salient Feature
- ✔Screwed Male End to IS 554/BS 21/ISO 7.
- ✔Provided with Chrome Plated Brass Ball Quarter Turn, Lever Operated.
- ✔Premium Quality PTFE Seat Ring.
- ✔Nickel Finish.
Test Pressure (Hydrostatic)
- ✔Shell: 25 kg/cm2g (350 psig)
- ✔Seat: 16 kg/cm2g (225 psig)
- ✔Maximum Working Temperature: 220°C
- ✔Suitable For: Water.

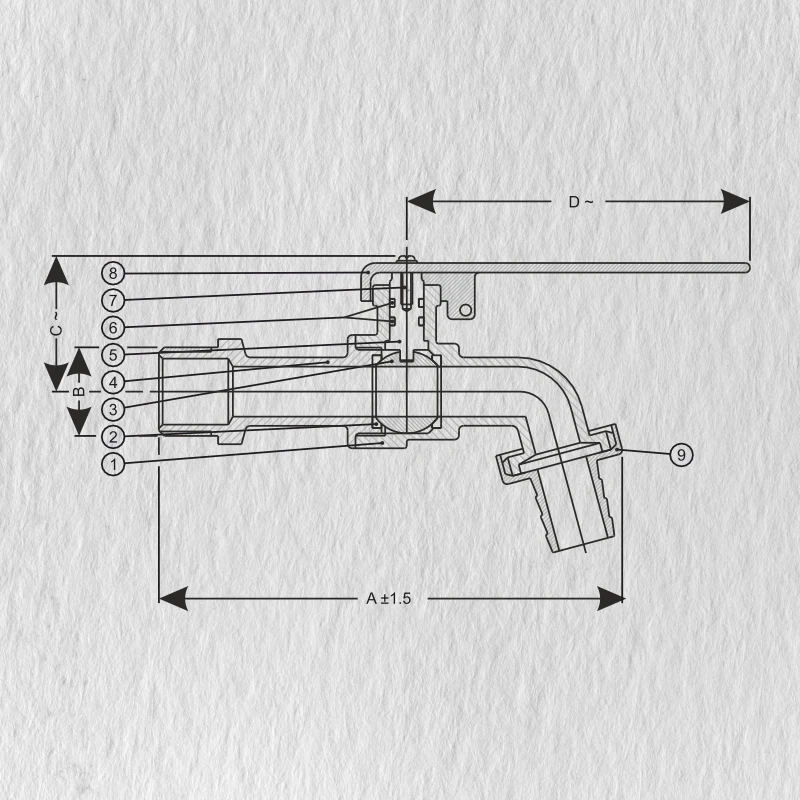

Material Specification
| Part No. | Name of Part | Material | QTY |
|---|---|---|---|
| 1 | Body | Forged Brass CW614N | 1 |
| 2 | Seat Ring | PTFE | 2 |
| 3 | Ball | Brass CW614N | 1 |
| 4 | Adaptor | Forged Brass CW614N | 1 |
| 5 | Stem | Forged Brass CW614N | 1 |
| 6 | Seal Ring | NBR | 2 |
| 7 | Screw | Mild Steel (Zinc Plated) | 1 |
| 8 | Handle | Aluminium Alloy | 1 |
| 9 | Nozzle | Forged Brass CW614N | 1 |

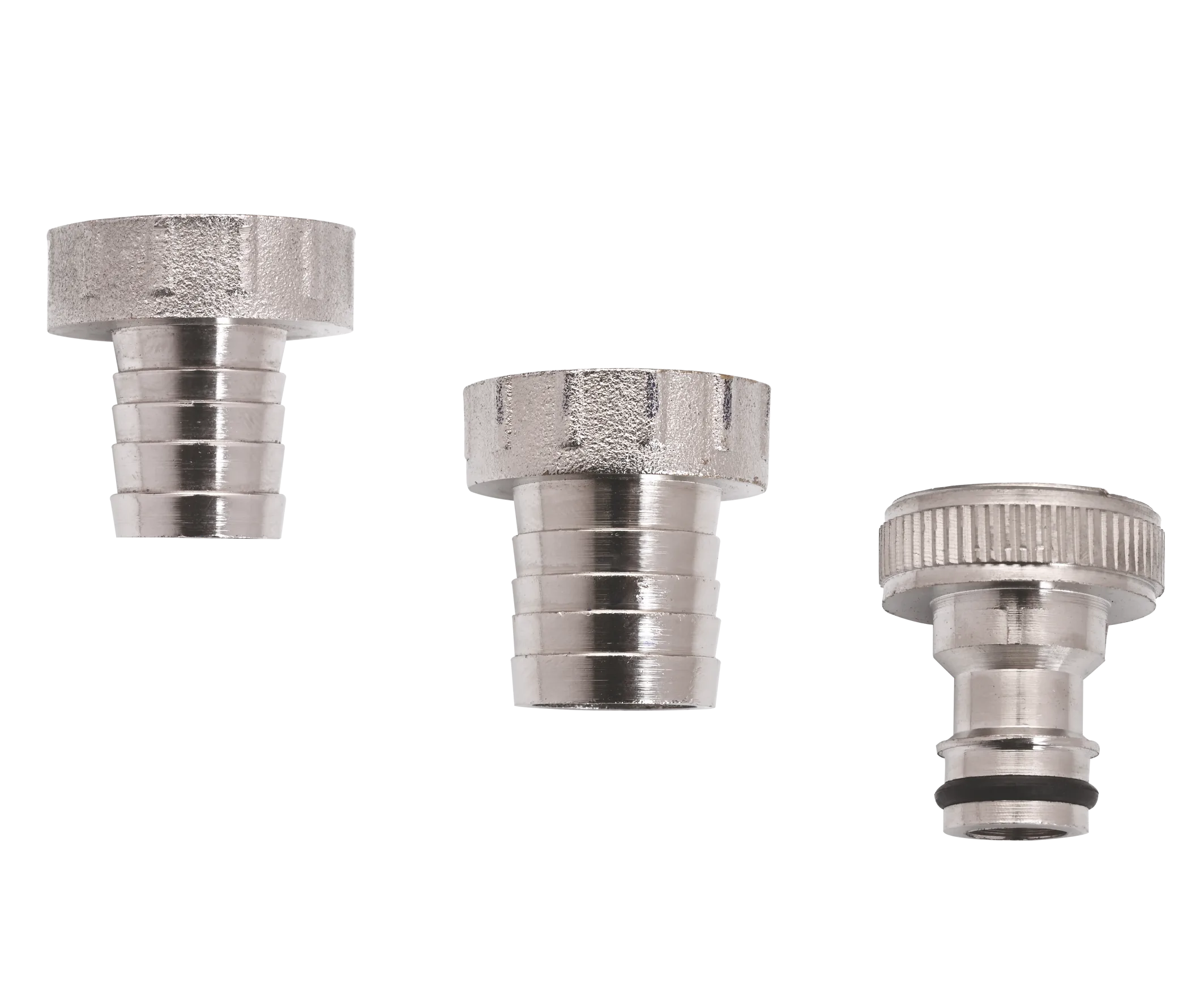

Sizes & Dimensions
| Item Code | Size | A | B | C | D | Description |
|---|---|---|---|---|---|---|
| 12015MNH | 1/2" (15 mm) | 100 | 1/2" | 60 | 76 | 1/2" Garden Pipe |
| Item Code | Size | A | B | C | D | Description |
|---|---|---|---|---|---|---|
| 12015MNQ | 1/2" (15 mm) | 100 | 1/2" | 60 | 76 | 3/4" Garden Pipe |
| Item Code | Size | A | B | C | D | Description |
|---|---|---|---|---|---|---|
| 12015MNW | 1/2" (15 mm) | 100 | 1/2" | 60 | 76 | Washing Machine |
All Dimensions are in mm
(~ ± 10mm)
