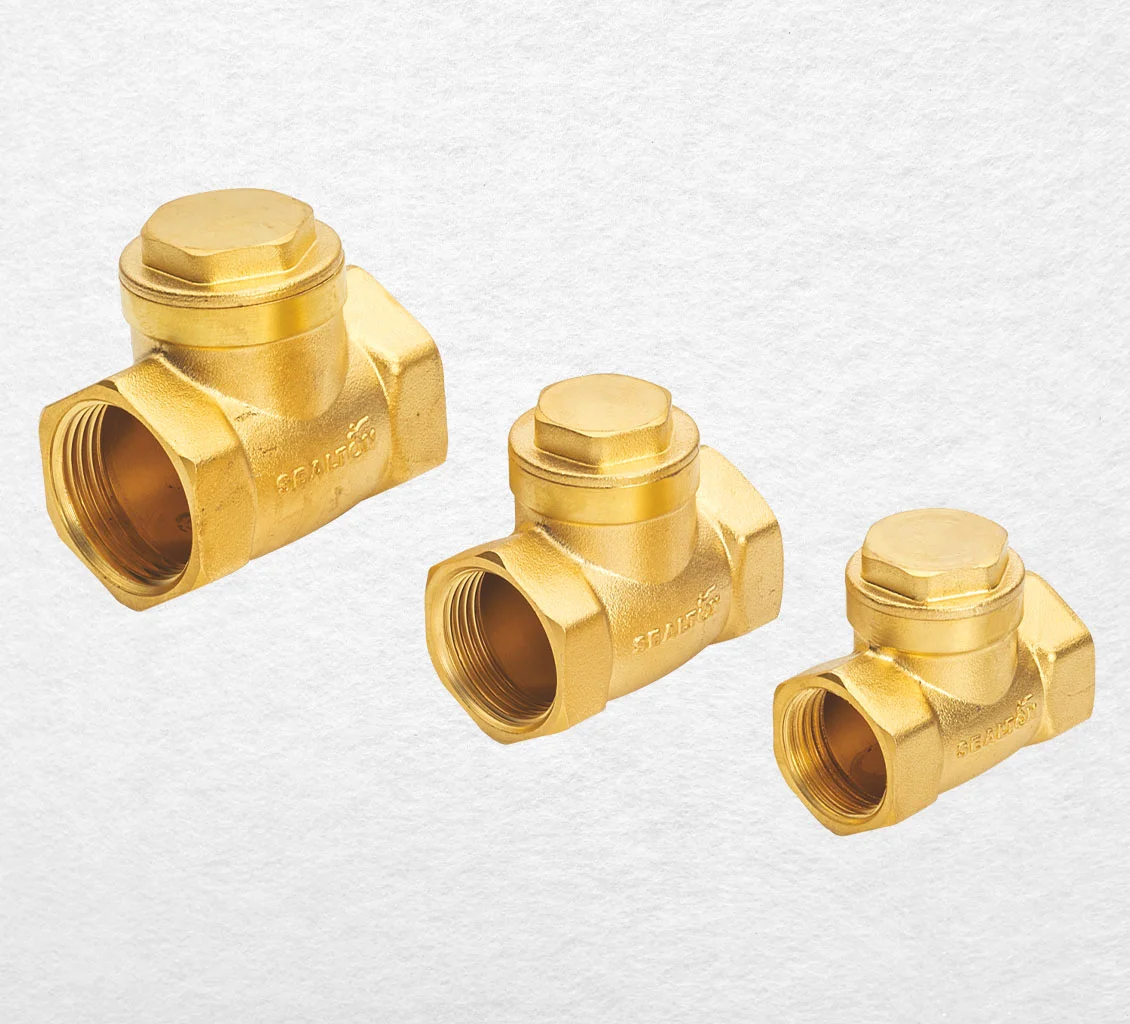

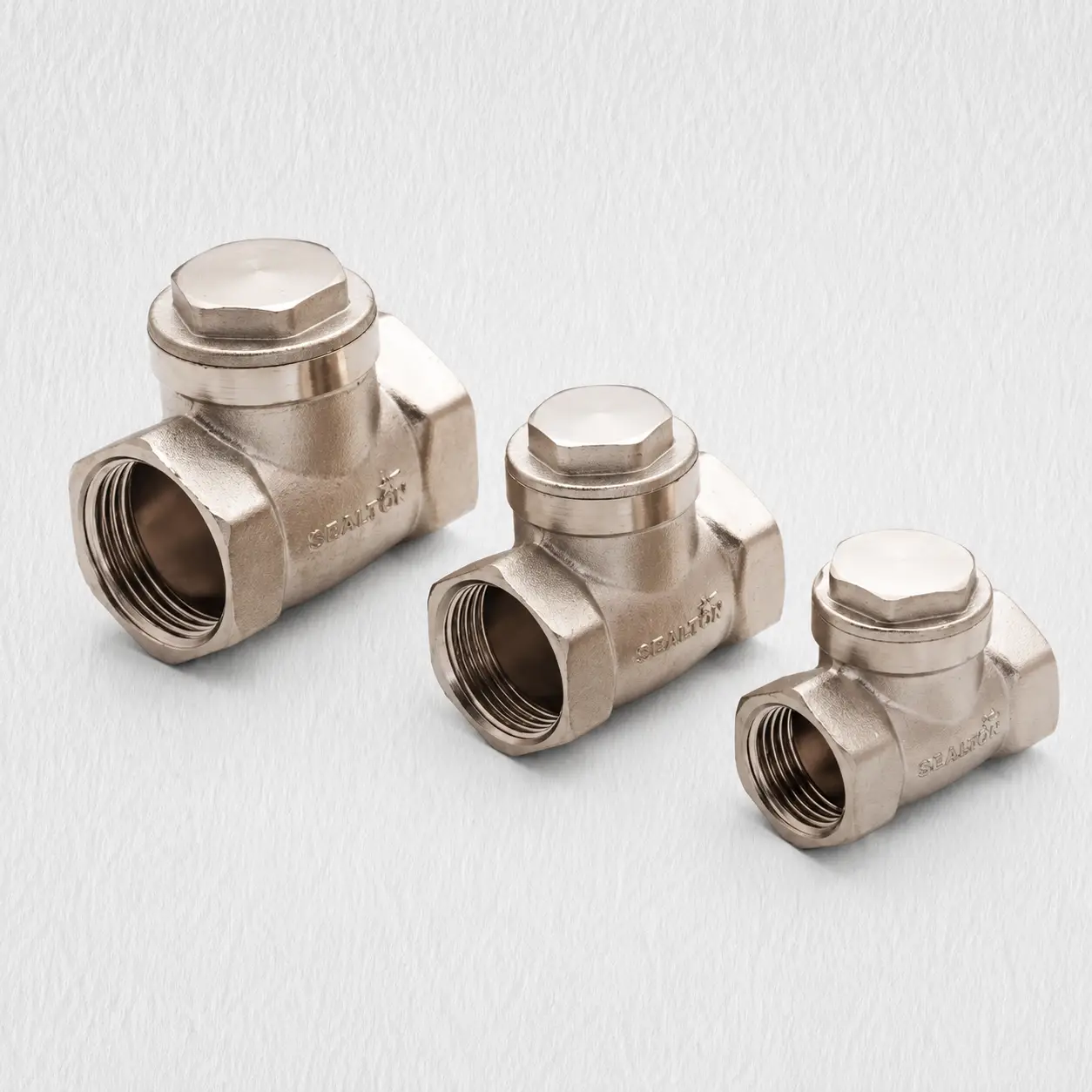

Salient Feature
- ✔Screwed Female Ends to IS 554 /
- ✔BS 21 / ISO 7.
- ✔Material – Full brass forged body & EPDM Seal
- ✔Permits flow in one direction and shuts automatically if the flow reverses.
- ✔Swing Type
- ✔Natural Brass Finish
- ✔Suitable For Water

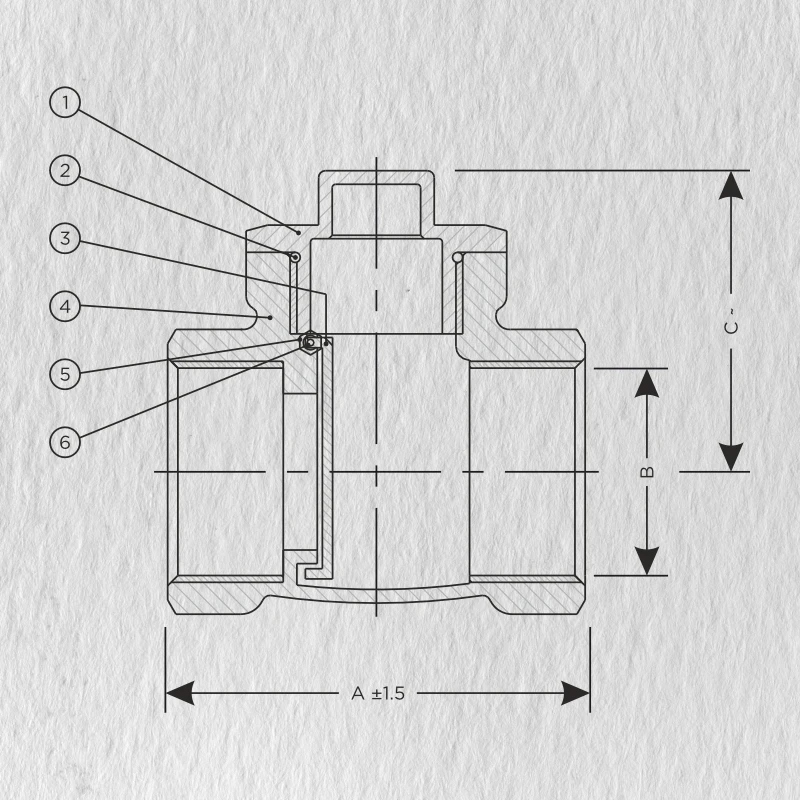

Material Specification
| Part | Name of Part | Material | Qty |
|---|---|---|---|
| 1 | Cap | Brass CW 614N | 1 |
| 2 | Packing | EPDM | 1 |
| 3 | Disc | Brass CW 614N | 1 |
| 4 | Body | Brass CW 614N | 1 |
| 5 | Bolt | Brass CW 614N | 1 |
| 6 | Pin | Brass CW 614N | 1 |
Sizes & Dimensions
| Item Code | Size | A ±1.5 | B | C |
|---|---|---|---|---|
| 20015FF | 1/2″ (15mm) | 46 | 1/2″ | 28 |
| 20020FF | 3/4″ (20mm) | 51 | 3/4″ | 34 |
| 20025FF | 1″ (25mm) | 58 | 1″ | 39 |
| 20032FF | 1.1/4″ (32mm) | 65 | 1.1/4″ | 44 |
| 20040FF | 1.1/2″ (40mm) | 75 | 1.1/2″ | 53 |
| 20050FF | 2″ (50mm) | 85 | 2″ | 61 |
All Dimensions are in mm
(~ ± 10mm)
