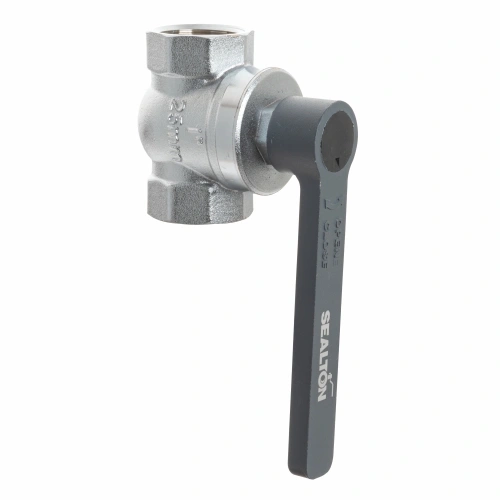

Top Entry Ball Valve
Salient Feature
- ✔Screwed Male & Female Ends to IS 554/BS 21/ISO 7.
- ✔Material Full brass forged body
- ✔Premium Quality PTFE Packing
- ✔ Working Temperature Hot and cold
water - ✔Aluminium Handle Powder Coated
Test Pressure (Hydrostatic)
- ✔Shell: 25 kg/cm2g (350 psig)
- ✔Seat: 16 kg/cm2g (225 psig)
- ✔Maximum Working Temperature: 100°C
- ✔Suitable For Water

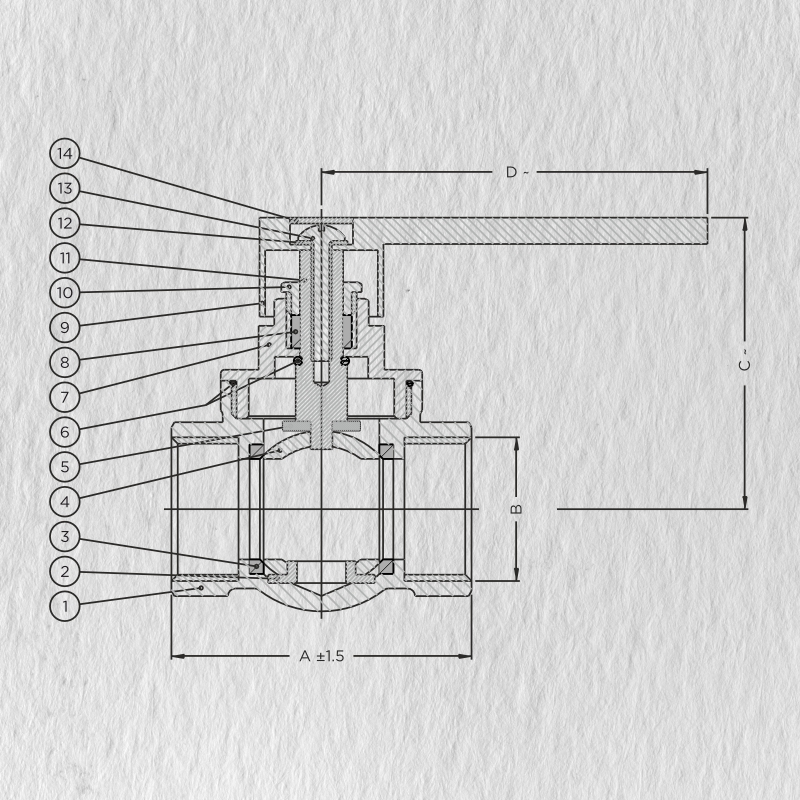

Material Specification
| Part | Name of Part | Material | Qty |
|---|---|---|---|
| 1 | Body | Forged Brass CW614N | 1 |
| 2 | Support Rubber | NBR | 1 |
| 3 | Seat Ring | TFM | 2 |
| 4 | Ball | Brass CW614N | 1 |
| 5 | Stop Plate | Stainless Steel | 1 |
| 6 | O-Ring | NBR | 2 |
| 7 | Adaptor Nut | Brass CW614N | 1 |
| 8 | Seal Ring | PTFE | 1 |
| 9 | Lever Handle | Aluminium Alloy (Powder Coated) | 1 |
| 10 | Bush | Brass CW614N | 1 |
| 11 | Spindle | Brass CW614N | 1 |
| 12 | Spring Washer | Stainless Steel | 1 |
| 13 | Screw | Stainless Steel | 1 |
| 14 | Cap | PVC | 1 |
BENEFIT:
All spare parts are easy to get and fit. No need to cut pipes or add unions the system can be fully repaired anytime.
Sizes & Dimensions
| Item Code | Size | A | B | C | D |
|---|---|---|---|---|---|
| 42015TEV | 1/2" (15 mm) | 54 | 1/2" | 53 | 90 |
| 42020TEV | 3/4" (20 mm) | 60 | 3/4" | 56 | 90 |
| 42025TEV | 1" (25 mm) | 70 | 1" | 60 | 125 |
All Dimensions are in mm
(~ ± 10mm)
