Salient Features
- ✔ Screwed Female Ends to IS 554 / BS 21 / ISO 7.
- ✔ Screwed in Bonnet, Non-Rising Stem, Integral Seat.
- ✔ Heavy duty, Full bore, long thread.
- ✔Permits flow in one direction and shuts automatically if the flow reverses.
- ✔ Forged Brass working parts, Integral Seat.
- ✔ Premium Quality PTFE Gland Packing.
Test Pressure (Hydrostatic)
- ✔ Shell: 25 kg/cm2g (350 psig)
- ✔ Seat: 16 kg/cm2g (225 psig)
- ✔ Maximum Working Temperature: 225°C
- ✔ SUITABLE FOR : Water, Oil

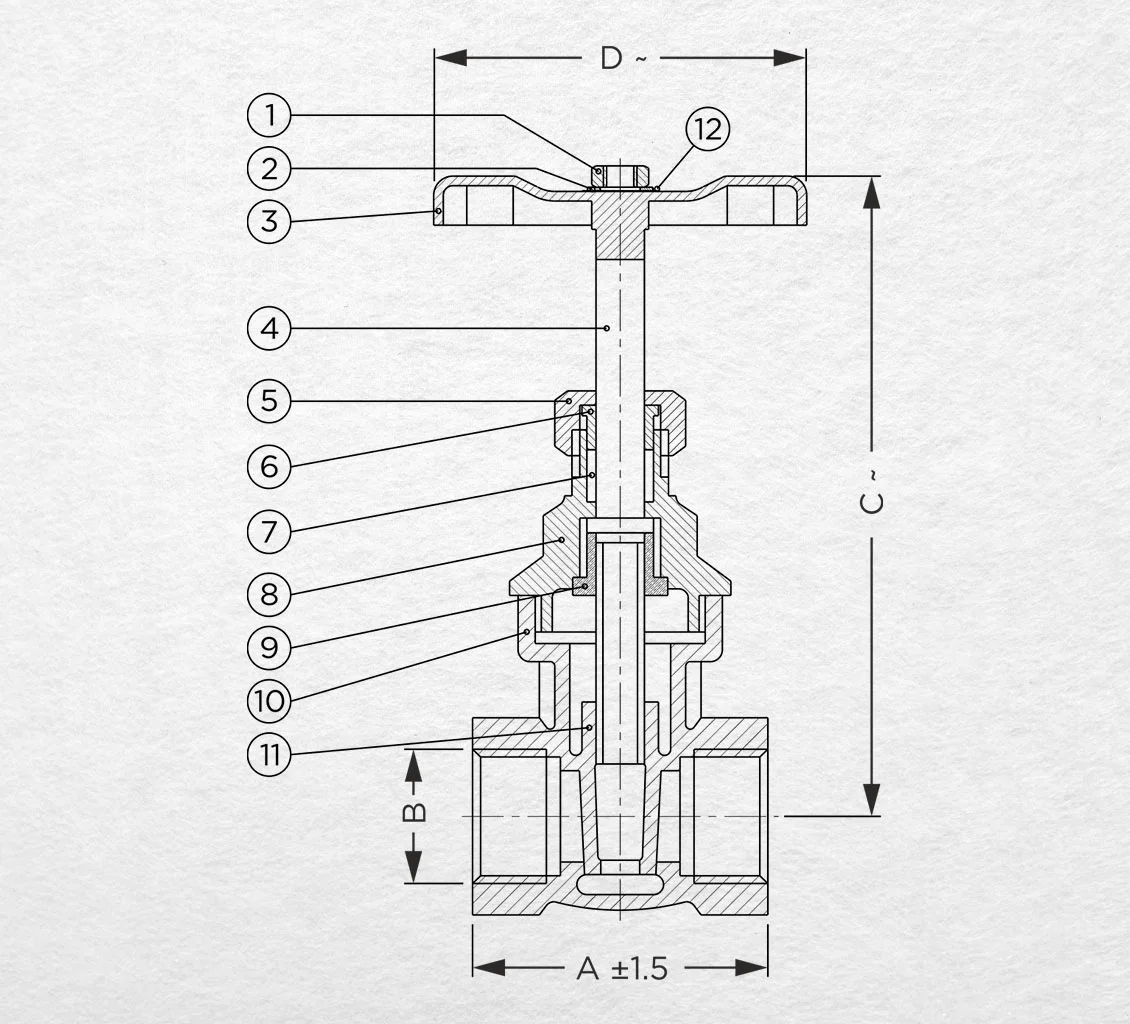

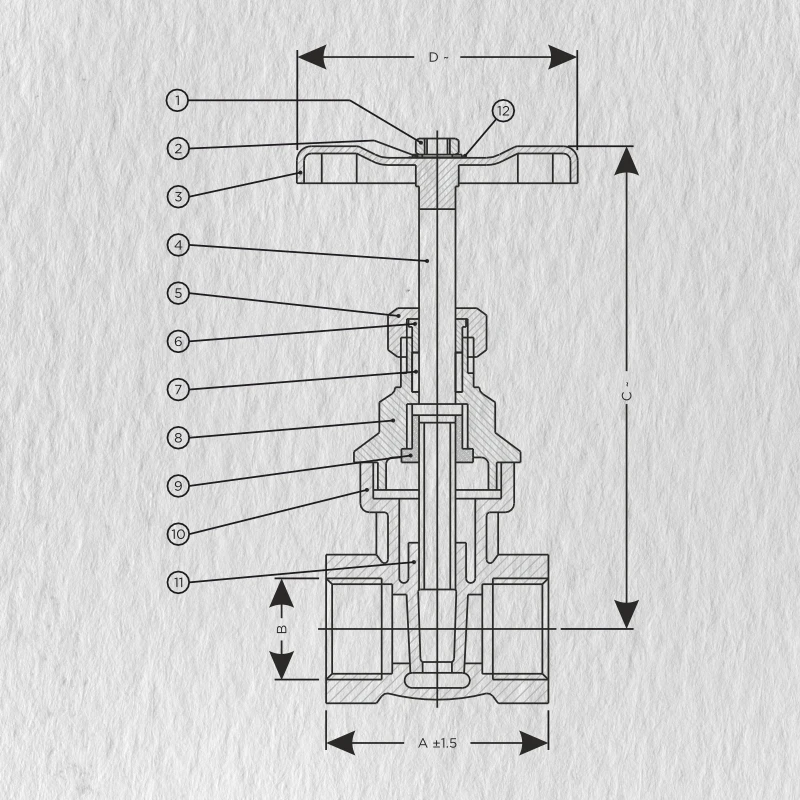

Material Specification
| Part | Name of Part | Material | Qty |
|---|---|---|---|
| 1 | Lock nut | Mild Steel (Zinc Plated) | 1 |
| 2 | Washer | Mild Steel (Zinc Plated) | 1 |
| 3 | Hand wheel | Aluminium alloy (Powder Coated) | 1 |
| 4 | Stem | Forged Brass CW614N | 1 |
| 5 | Gland Nut | Forged Brass CW614N | 1 |
| 6 | Gland | Forged Brass CW614N | 1 |
| 7 | Gland Packing | PTFE | 1 |
| 8 | Bonnet | Forged Brass CW614N | 1 |
| 9 | Check Nut | Forged Brass CW614N | 1 |
| 10 | Body | Forged Brass CW614N | 1 |
| 11 | Wedge | Forged Brass CW614N | 1 |
| 12 | Name Plate | Aluminum | 1 |
Sizes / Dimensions
| Item Code | Size | A ±1.5 | B | C | ØD |
|---|---|---|---|---|---|
| 30015FF | 1/2″ (15mm) | 37 | 1/2″ | 71 | 53 |
| 30020FF | 3/4″ (20mm) | 43 | 3/4″ | 93 | 53 |
| 30025FF | 1″ (25mm) | 53 | 1″ | 108 | 64 |
