Cable Lugs Copper Line Connectors

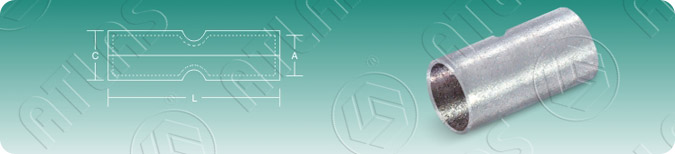

cable-lugs-copper-in-line-connectors-barrier-type

For straight through joints for copper conductor

Material: E-copper Brass

CODE NO.	SIZE (MM²)	DIMENSIONS (MM)
CODE NO.	SIZE (MM²)	A	C	L
AT-CON-1.5	1.5	1.8	3.7	12
AT-CON-2.5	2.5	2.4	4.0	15
AT-CON-4	4.0	3.1	4.8	15
AT-CON-6	6.0	3.8	5.5	15
AT-CON-10	10.0	4.5	6.2	20
AT-CON-16	16.0	5.4	7.1	20
AT-CON-20	20.0	6.0	7.7	20
AT-CON-25	25.0	6.8	8.8	32
AT-CON-35	35.0	8.2	10.6	36
AT-CON-50	50.0	9.5	12.4	40
AT-CON-70	70.0	11.2	14.7	40
AT-CON-95	95.0	13.5	17.4	45
AT-CON-120	120.0	15.0	19.4	45
AT-CON-150	150.0	16.5	21.2	55
AT-CON-185	185.0	18.5	23.5	65
AT-CON-240	240.0	21.0	26.5	80
AT-CON-300	300.0	23.5	30.0	85
AT-CON-400	400.0	26.8	34.4	91
AT-CON-500	500.0	30.0	39.0	100
AT-CON-630	630.0	35.0	45.0	112
AT-CON-800	800.0	39.0	50.6	150
AT-CON-1000	1000.0	43.0	56.2	170
