Cable Lugs Tubular Regular Type Manufacturer

Cable Lugs Tubular Regular Type is a type of cable lugs that is commonly used in electrical installations. Lugs for cables provide a reliable and secure method of connecting and terminating cables.

Cable Lugs Tubular Regular Type is mainly used to connect the ends of the cables to various electrical equipment such as switchgear, transformers, motors, and control panels.

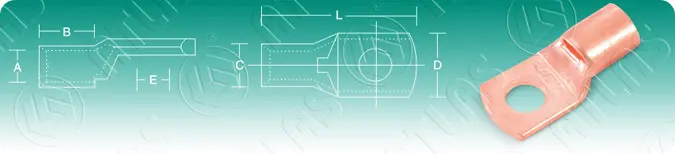

CODE NO.	CONDUCTOR SECTION (MM²)	BOLT E	DIMENSIONS (MM)
CODE NO.	CONDUCTOR SECTION (MM²)	BOLT E	B	D	A	C	L
AT-1.5-4	1.5	M 4	5	8	1.8	3.7	16
AT-1.5-5	1.5	M 5	–	8	–	–	16
AT-1.5-6	1.5	M 6	–	10	–	–	18

AT-2.5-4	2.5	M 4	7	8	2.4	4.0	18
AT-2.5-5	2.5	M 5	–	10	–	–	20
AT-2.5-5	2.5	M 5	–	8	–	–	18
AT-2.5-6	2.5	M 6	–	10	–	–	20

AT-4-5	4	M 5	7	10	3.1	4.8	20
AT-4-6	4	M 6	–	10	–	–	20
AT-4-5	4	M 5	–	9	–	–	20
AT-4-8	4	M 8	–	12	–	–	24

AT-6-5	6	M 5	9	10	3.8	5.5	23
AT-6-6	6	M 6	–	10	–	–	23
AT-6-5	6	M 6	–	12	–	–	27
AT-6-8	6	M 8	–	12	–	–	27
AT-6-10	6	M 10	–	16.8	–	–	33

AT-10-5	10	M 5	9	12	4.5	6.2	25
AT-10-6	10	M 6	–	12	–	–	25
AT-10-8	10	M 8	–	12	–	–	27
AT-10-10	10	M 10	–	19	–	–	33
AT-10-12	10	M 12	–	19	–	–	37

AT-16-5	16	M 5	12	12	5.4	7.1	30
AT-16-6	16	M 6	–	12	–	–	30
AT-16-8	16	M 8	–	12	–	–	32
AT-16-10	16	M 10	–	19	–	–	36
AT-16-12	16	M 12	–	19	–	–	40

AT-20-8	20	M 8	12	12	6.0	7.7	32

AT-25-6	25	M 6	12	13	6.8	8.8	30
AT-25-8	25	M 8	–	16	–	–	37
AT-25-10	25	M 10	–	16	–	–	37
AT-25-12	25	M 12	–	18	–	–	41

AT-35-6	35	M 6	12	15	8.2	10.6	35
AT-35-6	35	M 6	15	15	–	–	38
AT-35-8	35	M 8	12	15	–	–	35
AT-35-8	35	M 8	15	15	–	–	38
AT-35-10	35	M 10	15	15	–	–	40
AT-35-10	35	M 10	12	18	–	–	38
AT-35-10	35	M 10	15	18	–	–	41
AT-35-12	35	M 12	15	20	–	–	45

AT-50-6	50	M 6	16	18	9.5	12.4	43
AT-50-8	50	M 8	–	18	–	–	43
AT-50-10	50	M 10	–	18	–	–	43
AT-50-12	50	M 12	–	20	–	–	48

AT-70-6	70	M 6	18	21	11.2	14.7	50
AT-70-8	70	M 8	–	21	–	–	50
AT-70-10	70	M 10	–	21	–	–	50
AT-70-13	70	M 13	–	21	–	–	50
AT-70-14	70	M 14	–	28	–	–	57
AT-70-16	70	M 16	–	28	–	–	57

CODE NO.	CONDUCTOR SECTION (MM²)	BOLT E	DIMENSIONS (MM)
CODE NO.	CONDUCTOR SECTION (MM²)	BOLT E	B	D	A	C	L
AT – 451	95	M 8	20	25.0	13.5	17.4	55
AT – 452	95	M 10	–	25.0		–	55
AT – 453	95	M 12	–	25.0	–	–	55
AT – 454	95	M 14	–	28.0	–	–	61
AT – 455	95	M 16	–	28.0	–	–	61

AT – 456	120	M 8	22	28.0	15.0	19.4	60
AT – 457	120	M 10	–	28.0	–	–	60
AT – 458	120	M 12	–	28.0	–	–	60
AT – 459	120	M 14	–	28.0	–	–	64
AT – 460	120	M 16	–	28.0	–	–	64

AT – 461	150	M 8	26	30.0	16.5	21.2	69
AT – 462	150	M 10	–	30.0	–	–	69
AT – 463	150	M 12	–	30.0	–	–	69
AT – 464	150	M 14	–	30.0	–	–	69
AT – 465	150	M 16	–	30.0	–	–	69
AT – 466	150	M 20	–	34.0	–	–	79

AT – 467	185	M 10	32	34.0	18.5	23.5	78
AT – 468	185	M 12	–	34.0	–	–	78
AT – 469	185	M 14	–	34.0	–	–	78
AT – 470	185	M 16	–	34.0	–	–	78
AT – 471	185	M 20	–	34.0	–	–	78

AT – 472	240	M 10	38	38.0	21.0	26.5	92
AT – 473	240	M 12	–	38.0	–	–	92
AT – 474	240	M 14	–	38.0	–	–	92
AT – 475	240	M 16	–	38.0	–	–	92
AT – 476	240	M 20	–	38.0	–	–	92

AT – 477	300	M 12	42	43.0	23.5	30.0	101
AT – 478	300	M 14	–	43.0	–	–	101
AT – 479	300	M 16	–	43.0	23.5	30.0	10
AT – 480	300	M 20	–	43.0	–	–	101

AT – 481	400	–	44	50.1	26.8	34.8	114
AT – 482	400	M 12	–	50.1	–	–	114
AT – 483	400	M 14	–	50.1	–	–	114
AT – 484	400	M 14	–	50.1	–	–	114
AT – 485	400	M 16	–	50.1	–	–	114
AT – 486	400	M 16	–	50.1	–	–	105
AT – 487	400	M 20	–	50.1	–	–	105
AT – 488	400	M 20	–	50.1	–	–	114

AT – 489	500	–	48	56.0	30.0	39.0	124
AT – 490	500	M 20	52	59.5	31.7	41.4	132
AT – 491	500	M 16	48	56.0	30.0	39.0	124
AT – 492	500	M 20	48	56.0	30.0	39.0	124

AT – 493	630	M 16	56	65.0	35.0	45.0	144
AT – 494	630	M 20	–	65.0	–	–	144
AT – 495	630	–	–	65.0	–	–	144
AT – 496	630	M 20	70	59.0	34.0	40.2	145
AT – 497	630	–	–	59.0	–	–	145
AT – 498	630	–	–	59.6	–	–	145

AT – 499	800	–	78	72.9	39.0	50.6	170

AT – 500	1000	–	90	80.8	43.0	56.2	200
