Cable Lugs Tubular Standard Manufacturer

Cable Lugs Tubular Standard is widely used in electrical installations for securely connecting and terminating cables. They are used to connect cables to various electrical equipment such as switches, circuit breakers, distribution boards, and terminal blocks.

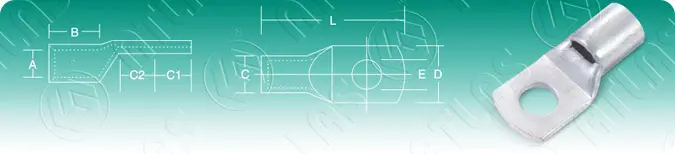

CODE NO.	CONDUCTOR SECTION (MM²)	BOLT	DIMENSIONS (MM)
CODE NO.	CONDUCTOR SECTION (MM²)	BOLT	A	B	D	E	C	C1	C2	L
AT-6-5	6	M 5	3.5	9	10	5.5	6.5	6.5	7.5	21
AT-6-6	6	M 6			12	6.5		6.5	7.5	21
AT-6-8	6	M 8			15	8.5		10	10	23
AT-6-10	6	M 10			17	10.5		12	12	25
AT-6-12	6	M 12			19	13		13	13	28

AT-10-5	10	M 5	4.5	10	12	5.5	7	6.5	7.5	22
AT-10-6	10	M 6			12	6.5		6.5	7.5	22
AT-10-8	10	M 8			15	8.5		10	10	25
AT-10-10	10	M 10			17	10.5		12	12	27
AT-10-10	10	M 12			19	13		13	13	29

AT-16-5	16	M 5	5.5	13	12	5.5	8.5	5.5	6.5	26
AT-16-6	16	M 6			12	6.5		6.25	7.5	27
AT-16-8	16	M 8			15	8.5		8.5	9.5	29
AT-16-10	16	M 10			17	10.5		10.5	11.5	31
AT-16-12	16	M 12			19	13		12	13	33

AT-25-5	25	M 5	7	15	14	5.5	10	7.5	7.5	30
AT-25-6	25	M 6			14	6.5		7.5	7.5	30
AT-25-8	25	M 8			16	8.5		10	10	32
AT-25-10	25	M 10			18	10.5		12	12	34
AT-25-12	25	M 12			19	13		13	13	35
AT-25-14	25	M 14			21	15		14.5	14.5	38

AT-35-6	35	M 6	8.5	17	17	6.5	12	7.5	7.5	32
AT-35-8	35	M 8			17	8.5		10	10	34
AT-35-10	35	M 10			19	10.5		12	12	37
AT-35-12	35	M 12			21	13		13	13	38
AT-35-14	35	M 14			21	15		14.5	14.5	40
AT-35-16	35	M 16			26	17		16	16	42

AT-50-6	50	M 6	10	19	20	6.5	14	10	10	37
AT-50-8	50	M 8			20	8.5		10	10	37
AT-50-10	50	M 10			20	10.5		12	12	39
AT-50-12	50	M 12			23	13		13	13	43
AT-50-14	50	M 14			23	15		14.5	14.5	45
AT-50-16	50	M 16			28	17		16	16	46
AT-50-20	50	M 20			30	21		19	19	48

CODE NO.	CONDUCTOR SECTION (MM²)	BOLT	DIMENSIONS (MM)
CODE NO.	CONDUCTOR SECTION (MM²)	BOLT	A	B	D	E	C	C1	C2	L
AT-70-6	70	M 6	12	21	20	6.5	16.5	10	10	43
AT-70-8	70	M 8			23	8.5		10	10	43
AT-70-10	70	M 10			23	10.5		12	12	44
AT-70-12	70	M 12			23	13		13	13	46
AT-70-14	70	M 14			23	15		14.5	14.5	48
AT-70-16	70	M 16			28	17		16	16	50
AT-70-20	70	M 20			30	17		19	19	53

AT-95-8	95	M 8	13.5	25	26	8.5	18	12	12	48
AT-95-10	95	M 10			26	10.5		12	12	48
AT-95-12	95	M 12			26	13		13	13	49
AT-95-14	95	M 14			26	15		14.5	14.5	51
AT-95-16	95	M 16			28	17		16	16	54
AT-95-20	95	M 20			36	21		22	22	60

AT-120-8	120	M 8	15	26	28	8.5	19.5	14	14	51
AT-120-10	120	M 10			28	10.5		14	14	51
AT-120-12	120	M 12			28	13		14	14	51
AT-120-14	120	M 14			28	15		15	15	52
AT-120-16	120	M 16			30	17		16	16	54
AT-120-20	120	M 20			36	21		22	22	63

AT-150-8	150	M 8	16.5	30	31	8.5	21	14	14	56
AT-150-10	150	M 10			31	10.5		14	14	56
AT-150-12	150	M 12			31	13		15	15	57
AT-150-14	150	M 14			31	15		15	15	57
AT-150-16	150	M 16			31	17		16	16	58
AT-150-20	150	M 20			36	21		22	22	66

AT-185-10	185	M 10	19	30	35	10.5	24	18	18	65
AT-185-12	185	M 12			35	13		18	18	65
AT-185-14	185	M 14			35	15		18	18	65
AT-185-16	185	M 16			35	17		18	18	65
AT-185-20	185	M 20			39	21		22	22	69

AT-240-10	240	M 10	21	35	39	10.5	26	21.5	19	72
AT-240-12	240	M 12			39	13		21.5	19	72
AT-240-14	240	M 14			39	15		21.5	19	72
AT-240-16	240	M 16			39	17		21.5	19	72
AT-240-16	240	M 20			39	21		21.5	19	72

AT-300-12	300	M 12	23.5	44	43	13	29.5	24	24	87
AT-300-14	300	M 14			43	15		24	24	87
AT-300-16	300	M 16			43	17		24	24	87
AT-300-20	300	M 20			43	21		24	24	87

AT-400-12	400	M 12	27	44	49	13	34	24	24	90
AT-400-14	400	M 14			49	15		24	24	90
AT-400-16	400	M 16			49	17		24	24	90
AT-400-20	400	M 20			49	21		24	24	90
