Adaptor & Reducer Cable Glands – ATCAB Sealing Solutions

GENERAL SPECIFICATION & AREA CLASSIFICATION

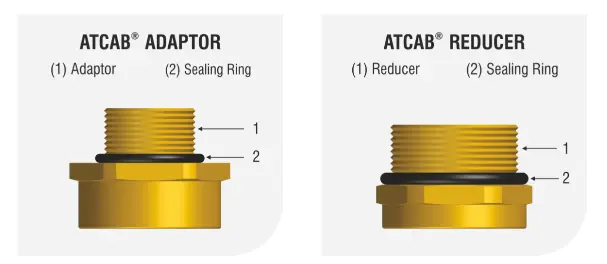

ATCAB@ADAPTOR

The ATCAB@ADAPTOR is intended for outdoor use in the appropriate Hazardou areas providing environmental protection IP67 with entry thread of Metric, BSP (BS Pipe Threads), NPT (Taper Threads) And ET (BS Conduit Thread). They are suitable for normal industrial environmental of temperature, humidity and vibration. The ATCABS ADAPTOR is available to suit explosive atmosphere applications as well as general purpose and industrial. The ATCAB@ ADAPTOR used for thread conversion and available in a wide range of thread & sizes. The ATCAB@ ADAPTOR consist of Adaptor and Sealing ring.

ATCAB’ REDUCER, -A -B

The ATCAB’ REDUCER is intended for outdoor use in the appropriate Hazardous areas providing environmental protection IP67 with entry thread of Metric, BSP (BS Pipe Threads), NPT (Taper Threads) And ET (BS Conduit Thread). They are suitable for normal industrial environmental of temperature, humidity and vibration. The ATCAB’ REDUCER is available to suit explosive atmosphere applications as well as general purpose and industrial. The ATCAB’ REDUCER used for thread conversion and available in a wide range of thread & sizes. The ATCAB’ REDUCER consist of Reducer and Sealing ring.
For use with Electrical apparatus in Zone 1, 2, 21, 22 areas. Groups IIA, 11B, IIC,IIIC

DECLARATION

Design Standard : EN 60079-09012+A112013, EN 60079-1:2014, EN 60079-31:2014,

Certification : II 2 GD Exdb IIC Gb/Exe IIC Gb Extb IIIC Db IP67

Ingress Protection : IP 67

Certificate-Adaptor : T117ATEX 824 X – Ex Notified Body No. 1354

Certificate-Reducer : T117ATEX 825 X – Ex Notified Body No. 1354

Marking-Adaptor :

Marking-Reducer :

OPTIONS

Materials : BRASS: BS 2874 CZ121 / IS 319 gr.l Stainless Steel : ASTM A314 gr. 304/316 L Mild Steel

Threads : ISO Metric National pipe Thread (NPT) British Standard pipe (BSP) Imperial (ET)

Plating : Brass Finish / Nickel Finish / Chrome Finish

Accessories : Lock Nut, Earth Tag, IP Nylon Washer, Serrated Washen PVC / LSF Shroud.

Atlas-A4-Certify-Cable-Gland-2018-QQ-_image03-Adap

Dimension Chart
SHAPE ‘A’ ADAPTOR DIMENSIONS
SHAPE ‘R’ REDUCER DIMENSIONS

Adaptor & Reducer
Male – Female Selection Chart

		FEMALE	M12x1.5	M16x1.5	M20x1.5	M25x1.5	M32x1.5	M40x1.5	M50x1.5	M63x1.5	M75x1.5	M90x1.5
		FEMALE	METRIC
MALE
METRIC	M12x1.5			A02	A03	A04
	M16x1.5		R01		A03	A04
	M20x1.5		R02	R02		A04	A05	A06
	M25x1.5		R03	R03	R03		A05	A06	A07
	M32x1.5			R04	R04	R04		A06	A07	A08
	M40x1.5				R05	R05	R05		A07	A08
	M50x1.5				R06	R06	R06	R06		A08	A09
	M63x1.5					R07	R07	R07	R07		A09	A10
	M75x1.5						R08	R08	R08	R08		A12
	M90x1.5										R09

		FEMALE	3/8" NPT	1/2" NPT	3/4" NPT	1" NPT	1.1/4" NPT	1.1/2" NPT	2" NPT	2.1/2" NPT	3" NPT
		FEMALE	NPT
MALE
METRIC	M12x1.5		A02	A111	A112
	M16x1.5		A02	A111	A112
	M20x1.5		R02	A111	A112	A113
	M25x1.5		R03	R03	A112	A113	A114
	M32x1.5		R04	R04	R04	A113	A114	A115
	M40x1.5			R05	R05	R05	A114	A115
	M50x1.5			R06	R06	R06	R06	A115	A116
	M63x1.5				R07	R07	R07	R07	A116	A117
	M75x1.5					R08	R08	R08	R08	A117	A120
	M90x1.5						R09	R09	R09	R09	A120

		FEMALE	3/8"	1/2"	3/4"	1"	1.1/4"	1.1/2"	2"	2.1/2"	3"
		FEMALE	BSPT
MALE
METRIC	M12x1.5		A02	A111
	M16x1.5		A02	A111	A112
	M20x1.5		R02	R03	A112	A159
	M25x1.5		R03	R03	A112	A159	A160
	M32x1.5		R04	R04	R04	A159	A160	A115
	M40x1.5			R05	R05	R05	A160	A115	A116
	M50x1.5				R06	R06	R06	A115	A116	A161
	M63x1.5					R07	R07	R07	A116	A161	A118
	M75x1.5							R08	R08	A162	A120
	M90x1.5								R09	R09	A120

		FEMALE	PG 7	PG 9	PG 11	PG 13.5	PG 16	PG 21	PG 29	PG 36	PG 42	PG 48
		FEMALE	PG
MALE
METRIC	M12x1.5		A84	A01	A02
	M16x1.5		R01	A01	A02	A03
	M20x1.5		R02	R02	A02	A03	A85
	M25x1.5		R03	R03	R03	R03	A89	A86
	M32x1.5		R04	R04	R04	R04	R04	A86	A06
	M40x1.5					R05	R05	R05	A06	A07
	M50x1.5				/td>		R06	R06	R06	A07	A87
	M63x1.5								R07	R07	R07	A90
	M75x1.5									R08	R08	R08
	M90x1.5										R09	R09

		FEMALE	G 3/8"	G 1/2"	G 3/4"	G 1"	G 1.1/4"	G 1.1/2"	G 2"	G 2.1/2"	G 3"
		FEMALE	BSP
MALE
METRIC	M12x1.5		A02	A03
	M16x1.5		A02	A03	A04
	M20x1.5		R02	A03	A04	A50
	M25x1.5		R03	R03	A04	A50	A51
	M32x1.5		R04	R04	R04	R04	R04	A86	A06
	M40x1.5					R05	R05	R05	A06	A07
	M50x1.5					R06	R06	A52	A53	A09
	M63x1.5							R07	R07	A53	A09
	M75x1.5							R08	R28	A11	A55
	M90x1.5								R09	R09	A55

		FEMALE	ET 1/2"	ET 5/8"	ET 3/4"	ET 1"	ET 1.1/4"	ET 1.1/2"	ET 2"	ET 2.1/2"	ET 3"	ET 3.1/2"
		FEMALE	B.S.CONE (ET)
MALE
METRIC	M12x1.5			A02
	M16x1.5			A02	A03
	M20x1.5			R02	A03	A04	A05
	M25x1.5			R03	R03	A04	A05	A06
	M32x1.5			R04	R04	A04	A05	A06	A07
	M40x1.5				R05	R05	R05	A06	A07	A08
	M50x1.5					R06	R06	R06	A07	A08	A09
	M63x1.5						R07	R07	R07	A08	A09	A10
	M75x1.5							R08	R08	R08	A11	A12
	M90x1.5									R09	R09	A12

		FEMALE	M12x1.5	M16x1.5	M20x1.5	M25x1.5	M32x1.5	M40x1.5	M50x1.5	M63x1.5	M75x1.5	M90x1.5
		FEMALE	METRIC
MALE
NPT	3/8" NPT		R01	A02	A03	A04
	1/2" NPT		R21	R21	A27	A28	A29
	3/4" NPT		R22	R22	R22	A28	A29	A30
	1" NPT			R23	R23	R23	A32	A33	A34
	1.1/4" NPT				R24	R24	R24	A33	A34	A35
	1.1/2" NPT					R25	R25	R25	A38	A39	A40
	2" NPT						R26	R26	R26	A39	A40
	2.1/2" NPT							R27	R27	R27	A42	A43
	3" NPT							R28	R28	R28	R28	A43
	M90x1.5									R09	R09	A12

		FEMALE	3/8" NPT	1/2" NPT	3/4" NPT	1" NPT	1.1/4" NPT	1.1/2" NPT	2" NPT	2.1/2" NPT	3" NPT
		FEMALE	NPT
MALE
NPT	3/8" NPT			A111	A112	A113
	1/2" NPT		A99		A137	A138	A139
	3/4" NPT		R22	R22		A138	A139	A140
	1" NPT		R23	R23	R23			A142	A143	A144
	1.1/4" NPT			R24	R24	R24		A143	A144	A145
	1.1/2" NPT				R25	R25	R25		A148	A149	A150
	2" NPT						R26	R26		A146	A150
	2.1/2" NPT							R27	R27		A152
	3" NPT								R28	R28

		FEMALE	3/8"	1/2"	3/4"	1"	1.1/4"	1.1/2"	2"	2.1/2"	3"
		FEMALE	BSPT
MALE
NPT	3/8" NPT			A111	A112
	1/2" NPT		A99		A137	A168
	3/4" NPT		R22	R22		A168	A169
	1" NPT		R23	R23	R23		A171	A143
	1.1/4" NPT		R24	R24	R24	R24		A143	A144
	1.1/2" NPT				R25	R25	R25		A148	A173
	2" NPT				R26	R26	R26	R26		A173	A150
	2.1/2" NPT						R27	R27	R27		A152
	3" NPT								R28	R28

		FEMALE	G 3/8"	G 1/2"	G 3/4"	G 1"	G 1.1/4"	G 1.1/2"	G 2"	G 2.1/2"	G 3"
		FEMALE	BSP
MALE
NPT	3/8" NPT		A02	A03	A04
	1/2" NPT		R21	A27	A28	A67
	3/4" NPT		R22	R22	A28	A67	A68
	1" NPT		R23	R23	R23	A70	A71	A72
	1.1/4" NPT			R24	R24	R24	A71	A72	A73
	1.1/2" NPT				R25	R25	R25		A75	A76	A40
	2" NPT					R26	R26	R26	A76	A40	A77
	2.1/2" NPT						R27	R27	R27	A42	A78
	3" NPT							R28	R28	R28	A78

		FEMALE	ET 1/2"	ET 5/8"	ET 3/4"	ET 1"	ET 1.1/4"	ET 1.1/2"	ET 2"	ET 2.1/2"	ET 3"	ET 3.1/2"
		FEMALE	B.S.CONE (ET)
MALE
NPT	3/8" NPT		A02	A02	A03
	1/2" NPT			R21	A27	A28
	3/4" NPT			R22	R22	A28	A29
	1" NPT			R23	R23	R23	A32	A33
	1.1/4" NPT				R24	R24	R24	A33	A34
	1.1/2" NPT					R25	R25	R25	A34	A39	A40
	2" NPT						R26	R26	R26	A39	A40
	2.1/2" NPT							R27	R27	R27	A42	A43

		FEMALE	M12x1.5	M16x1.5	M20x1.5	M25x1.5	M32x1.5	M40x1.5	M50x1.5	M63x1.5	M75x1.5	M90x1.5
		FEMALE	METRIC
MALE
BSPT	3/8"		R01		A03	A04
	1/2"		R21	R21	A27	A28	A29
	3/4" NPT		R22	R22	R22	A28	A29	A30
	1"			R29	R29	R29	A44	A45	A46
	1.1/4"				R30	R30	R30	A45	A46	A47
	1.1/2"					R25	R25	R25	A38	A39
	2"						R26	R26	R26	A39	A40
	2.1/2"							R31	R31	R31	A42	A43
	3"								R28	R28	R28	A43

		FEMALE	3/8" NPT	1/2" NPT	3/4" NPT	1" NPT	1.1/4" NPT	1.1/2" NPT	2" NPT	2.1/2" NPT	3" NPT
		FEMALE	NPT
MALE
BSPT	3/8"		R01		A03	A04
	1/2"		R21	R21	A27	A28	A29
	3/4"		R22	R22	R22	A28	A29	A30
	1"			R29	R29	R29	A44	A45	A46
	1.1/4"				R30	R30	R30	A45	A46	A47
	1.1/2"					R25	R25	R25	A38	A39
	2"						R26	R26	R26	A39	A40
	2.1/2"							R31	R31	R31	A42
	3"								R28	R28	R28

		FEMALE	3/8" NPT	1/2" NPT	3/4" NPT	1" NPT	1.1/4" NPT	1.1/2" NPT	2" NPT	2.1/2" NPT	3" NPT
		FEMALE	NPT
MALE
BSPT	3/8"			A111	A112
	1/2"		R21		A137		A29
	3/4"		R22	R22		A138	A139
	1"		R29	R29	R29		A154	A155
	1.1/4"			R30	R30	R30		A155	A156
	1.1/2"				R25	R25	R25		A148	A149
	2"					R26	R26	R26		A149	A150
	2.1/2"						R31	R31	R31		A152
	3"							R28	R28	R28

		FEMALE	3/8"	1/2"	3/4"	1"	1.1/4"	1.1/2"	2"	2.1/2"	3"
		FEMALE	BSPT
MALE
BSPT	3/8"			A111	A112
	1/2"		R21		A137	A168
	3/4"		R22	R22		A168	A169
	1"		R29	R29	R29		A176	A155
	1.1/4"			R30	R30	R30		A155	A156
	1.1/2"				R25	R25	R25		A148	A173
	2"					R26	R26	R26		A173	A150
	2.1/2"						R31	R31	R31		A152
	3"							R28	R28	R28

		FEMALE	G 3/8"	G 1/2"	G 3/4"	G 1"	G 1.1/4"	G 1.1/2"	G 2"	G 2.1/2"	G 3"
		FEMALE	BSP
MALE
BSPT	3/8"		A02	A03	A04
	1/2"		R21	A27	A28	A67
	3/4"		R22	R22	A28	A67	A68
	1"		R29	R29	R29	A79	A80	A81
	1.1/4"			R30	R30	R30	A80	A81	A82
	1.1/2"				R25	R25	R25	A75	A76	A40
	2"					R26	R26	R26	A76	A40	A77
	2.1/2"						R31	R31	R31	A42	A78
	3"							R28	R28	R28	A78

		FEMALE	ET 1/2"	ET 5/8"	ET 3/4"	ET 1"	ET 1.1/4"	ET 1.1/2"	ET 2"	ET 2.1/2"	ET 3"	ET 3.1/2"
		FEMALE	B.S.CONE (ET)
MALE
BSPT	3/8"			A02	A03
	1/2"			R21	A27	A28
	3/4"			R22	R22	A28	A29
	1"			R29	R29	R29	A44	A45
	1.1/4"				R30	R30	R30	A46	A46
	1.1/2"					R25	R25	R25	A38	A39
	2"						R26	R26	R26	A39	A40
	2.1/2"							R31	R31	R31	A42	A43
	3"								R28	R28	R28	A43

		FEMALE	M12x1.5	M16x1.5	M20x1.5	M25x1.5	M32x1.5	M40x1.5	M50x1.5	M63x1.5	M75x1.5	M90x1.5
		FEMALE	METRIC
MALE
PG	PG 7		A01	A02
	PG 9		A01	A02	A03
	PG 11		R02	A02	A03	A04
	PG 13.5		R10	R10	A03	A04	A05
	PG 16		R10	R10	A03	A04	A05	A06
	PG 21			R16	R16	A04	A05	A07
	PG 29				R17	R17	R17	A06	A07	A08
	PG 36					R18	R18	R18	A07	A08	A09
	PG 42						R19	R19	A178	A179	A11	A12
	PG 48							R20	R20	A179	A11	A12

		FEMALE	PG 7	PG 9	PG 11	PG 13.5	PG 16	PG 21	PG 29	PG 36	PG 42	PG 48
		FEMALE	PG
MALE
PG	PG 7			A01	A02	A03
	PG 9		A01		A02	A03	A85
	PG 11		R02	A02		A03	A85	A86
	PG 13.5		R10	R10			A85	A86	A06
	PG 16		R10	R10	R10			A86	A06	A07
	PG 21				R16	R16	R16		A06	A07	A87
	PG 29					R17	R17	R17		A07	A87	A88
	PG 36						R18	R18	R18		A88
	PG 42							R19	R19	R19		A98
	PG 48								R20	R20	R20

		FEMALE	M12x1.5	M16x1.5	M20x1.5	M25x1.5	M32x1.5	M40x1.5	M50x1.5	M63x1.5	M75x1.5	M90x1.5
		FEMALE	METRIC
MALE
PG	G 3/8"		R01	A02	A03	A04
	G 1/2"		R02	R02	A03	A04	A05
	G 3/4"		R03	R03	R03	A04	A05	A06
	G 1"			R04	R04	R04	A13	A14	A15
	G 1.1/4"				R05	R05	R05	A19	A20	A21
	G 1.1/2"					R06	R06	R06	A20	A21	A22
	G 2"						R07	R07	R07	A24	A25	A26
	G 2.1/2"							R08	R08	R08	A11	A12
	G 3"								R09	R09	R09	A12

		FEMALE	3/8" NPT	1/2" NPT	3/4" NPT	1" NPT	1.1/4" NPT	1.1/2" NPT	2" NPT	2.1/2" NPT	3" NPT
		FEMALE	NPT
MALE
BSP	G 3/8"		A02	A111	A112
	G 1/2"		R01	A111	A112	A113
	G 3/4"		R03	R03	A112	A113	A114
	G 1"		R11	R11	R11	A113	A114	A115
	G 1.1/4"			R12	R12	R12	A114	A115	A116
	G 1.1/2"				R13	R13	R13	A115	A116	A117
	G 2"					R14	R14	R14	A116	A117
	G 2.1/2"						R08	R08	R08	A119	A120
	G 3"							R15	R15	R15	A120

		FEMALE	3/8"	1/2"	3/4"	1"	1.1/4"	1.1/2"	2"	2.1/2"	3"
		FEMALE	BSPT
MALE
BSP	G 3/8"			A111	A112
	G 1/2"		R01		A112	A159
	G 3/4"		R03	R03		A159	A160
	G 1"		R11	R11	R11		A164	A123
	G 1.1/4"			R12	R12	R12		A128	A129
	G 1.1/2"				R13	R13	R13		A129
	G 2"					R14	R14	R14		A168	A134
	G 2.1/2"						R08	R08	R08		A120
	G 3"							R15	R15	R15

		FEMALE	G 3/8"	G 1/2"	G 3/4"	G 1"	G 1.1/4"	G 1.1/2"	G 2"	G 2.1/2"	G 3"
		FEMALE	BSP
MALE
BSP	G 3/8"			A03	A04	A50
	G 1/2"		R10		A04	A50	A51
	G 3/4"		R03	R03		A50	A51	A52
	G 1"		R11	R11	R11		A57	A58	A59
	G 1.1/4"			R12	R12	R12		A62	A63	A22
	G 1.1/2"				R13	R13	R13		A63	A22	A64
	G 2"					R14	R14	R14		A25	A66
	G 2.1/2"						R08	R08	R08		A55
	G 3"							R15	R15	R15

		FEMALE	ET 1/2"	ET 5/8"	ET 3/4"	ET 1"	ET 1.1/4"	ET 1.1/2"	ET 2"	ET 2.1/2"	ET 3"	ET 3.1/2"
		FEMALE	B.S.CONE (ET)
MALE
PG	G 3/8"			A02	A03	A04
	G 1/2"			R02	A03	A04	A05
	G 3/4"			R03	A03	A04	A05	A06
	G 1"			R04	R04	R04	A13	A14	A15
	G 1.1/4"				R05	R05	A05	A19	A20	A21
	G 1.1/2"					R06	R06	R06	A20	A21	A22
	G 2"						R07	R07	A07	A24	A25	A26
	G 2.1/2"							R08	R08	A08	A11	A12
	G 3"								R09	R09	R09	A12

		FEMALE	M12x1.5	M16x1.5	M20x1.5	M25x1.5	M32x1.5	M40x1.5	M50x1.5	M63x1.5	M75x1.5	M90x1.5
		FEMALE	METRIC
MALE
B.S.CONE (ET)	ET 1/2"		A01	A02	A03
	ET 5/8"		R01	A02	A03	A04	A05
	ET 3/4"		R02	R02	A03	A04	A05
	ET 1"		R03	R03	R03	A04	A05	A06
	ET 1.1/4"			R04	R04	R04	A13	A06	A07
	ET 1.1/2"				R05	R05	R05	A06	A07	A21
	ET 2"					R06	R06	R06	A07	A21	A22
	ET 2.1/2"						R07	R07	R07	A24	A25	A26
	ET 3"							R08	R08	R08	A11	A12
	ET 3.1/2"								R09	R09	R09	A12

		FEMALE	3/8" NPT	1/2" NPT	3/4" NPT	1" NPT	1.1/4" NPT	1.1/2" NPT	2" NPT	2.1/2" NPT	3" NPT
		FEMALE	NPT
MALE
BSP	ET 1/2"		A02	A111
	ET 5/8"		A02	A111	A112
	ET 3/4"		A02	A111	A112	A113
	ET 1"		R03	R03	A112	A113	A114
	ET 1.1/4"		R04	R04	R04	A113	A114	A115
	ET 1.1/2"			R05	R05	R05	A114	A115	A116
	ET 2"				R06	R06	R06	A115	A116	A117
	ET 2.1/2"					R07	R07	R07	A116	A117	A118
	ET 3"						R08	R08	R08	A119	A120
	ET 3.1/2"							R09	R09	R09	A120

		FEMALE	3/8"	1/2"	3/4"	1"	1.1/4"	1.1/2"	2"	2.1/2"
		FEMALE	BSPT
MALE
B.S.CONE (ET)	ET 1/2"		A02	A111
	ET 5/8"		A02	A111	A112
	ET 3/4"		A02	A111	A112	A159
	ET 1"		R03	R03	A112	A159	A160
	ET 1.1/4"		R04	R04	R04	A159	A160	A115
	ET 1.1/2"			R05	R05	R05	A160	A115	A116
	ET 2"				R06	R06	R06	A115	A116	A161
	ET 2.1/2"					R07	R07	R07	A116	A161
	ET 3"						R08	R08	R08	A162
	ET 3.1/2"							R09	R09	R09

		FEMALE	3/8"	1/2"	3/4"	1"	1.1/4"	1.1/2"	2"	2.1/2"
		FEMALE	BSPT
MALE
B.S.CONE (ET)	ET 1/2"		A02	A111
	ET 5/8"		A02	A111	A112
	ET 3/4"		A02	A111	A112	A159
	ET 1"		R03	R03	A112	A159	A160
	ET 1.1/4"		R04	R04	R04	A159	A160	A115
	ET 1.1/2"			R05	R05	R05	A160	A115	A116
	ET 2"				R06	R06	R06	A115	A116	A161
	ET 2.1/2"					R07	R07	R07	A116	A161
	ET 3"						R08	R08	R08	A162
	ET 3.1/2"							R09	R09	R09

		FEMALE	3/8"	1/2"	3/4"	1"	1.1/4"	1.1/2"	2"	2.1/2"
		FEMALE	BSPT
MALE
B.S.CONE (ET)	ET 1/2"		A02	A111
	ET 5/8"		A02	A111	A112
	ET 3/4"		A02	A111	A112	A159
	ET 1"		R03	R03	A112	A159	A160
	ET 1.1/4"		R04	R04	R04	A159	A160	A115
	ET 1.1/2"			R05	R05	R05	A160	A115	A116
	ET 2"				R06	R06	R06	A115	A116	A161
	ET 2.1/2"					R07	R07	R07	A116	A161
	ET 3"						R08	R08	R08	A162
	ET 3.1/2"							R09	R09	R09

		FEMALE	G 3/8"	G 1/2"	G 3/4"	G 1"	G 1.1/4"	G 1.1/2"	G 2"	G 2.1/2"	G 3"
		FEMALE	BSP
MALE
B.S.CONE (ET)	ET 1/2"		A02	A02	A03	A04
	ET 5/8"		A02	A03	A04	A50
	ET 3/4"		A02	A03	A04	A50	A51
	ET 1"		R03	R03	A04	A50	A51	A52
	ET 1.1/4"		R04	R04	R04	A50	A51	A52	A53
	ET 1.1/2"			R05	R05	R05	A51	A52	A53	A09
	ET 2"				R06	R06	R06	A52	A53	A09	A54
	ET 2.1/2"					R07	R07	R07	A53	A09	A54
	ET 3"						R08	R08	R08	A11	A55
	ET 3.1/2"							R09	R09	R09	A55

		FEMALE	ET 1/2"	ET 5/8"	ET 3/4"	ET 1"	ET 1.1/4"	ET 1.1/2"	ET 2"	ET 2.1/2"	ET 3"	ET 3.1/2"
		FEMALE	B.S.CONE (ET)
MALE
B.S.CONE (ET)	ET 1/2"			A02	A03	A04
	ET 5/8"				A03	A04	A05
	ET 3/4"			R02		A04	A05	A06
	ET 1"		R03	R03			A05	A06	A07
	ET 1.1/4"			R04	R04			A06	A07	A08
	ET 1.1/2"				R05	R05	R05		A07	A08	A09
	ET 2"					R06	R06	R06		A08	A09	A10
	ET 2.1/2"							R08	R08	R08	A09	A10
	ET 3"							R08	R08	R08		A12
	ET 3.1/2"								R09	R09	R09

Atlas Across Borders

Connect with Atlas Metals and let us know your requirement. Be assured of quality solutions.

Manufacturer & Exporter of Brass Electrical Wiring & Earthing Accessories

Adaptor Reducer

Adaptor & Reducer
Male – Female Selection Chart

Discover other products

A2 Compression Type Cable Glands

A2 CXT Cable Glands

A2 Series* Cable Gland Type A1-A2

A2 Series* Cable Gland Type A2F

Aluminium Cable Glands

Adaptor Reducer

ALCO Type Cable Glands

BWR Rotary Cone Cable Glands

BW4PT Cable Gland

BW 2 PT Cable Glands

CW4PT Cable Gland

CW 3 PT Type Cable Glands

CW 3 PT Type 2 Cable Glands

Earth Tags

E1W Cable Glands

Double Compression Weather & Flame Proof Glands

PG Cable Glands With IP54

E* Series Cable Gland

Entry Thread Seals

IP68 PG Cable Glands

IP68 Metric Cable Glands

Cable Gland Kit

MARINE Type Cable Glands

Locknuts – PG, METRIC & NPT

Stop Plugs

PVC Shrouds

Address

Call

Email

Adaptor Reducer

Adaptor & Reducer Male – Female Selection Chart

Discover other products

A2 Compression Type Cable Glands

A2 CXT Cable Glands

A2 Series* Cable Gland Type A1-A2

A2 Series* Cable Gland Type A2F

Aluminium Cable Glands

Adaptor Reducer

ALCO Type Cable Glands

BWR Rotary Cone Cable Glands

BW4PT Cable Gland

BW 2 PT Cable Glands

CW4PT Cable Gland

CW 3 PT Type Cable Glands

CW 3 PT Type 2 Cable Glands

Earth Tags

E1W Cable Glands

Double Compression Weather & Flame Proof Glands

PG Cable Glands With IP54

E* Series Cable Gland

Entry Thread Seals

IP68 PG Cable Glands

IP68 Metric Cable Glands

Cable Gland Kit

MARINE Type Cable Glands

Locknuts – PG, METRIC & NPT

Stop Plugs

PVC Shrouds

Address

Call

Email

Adaptor & Reducer
Male – Female Selection Chart
