BWR Rotary Cone Cable Glands

  Home Atlas Metal Industries Pvt. Ltd.  /  Atcab Products  /  ATCAB Cable Glands and Brass Accessories for Industrial Use  /  BWR Rotary Cone Cable Glands

BWR Rotary Cone Cable Glands

BWR Rotary Cone Cable Glands, also known as brass cable glands, are a type of cable gland that is commonly used in cable management systems. This type of cable gland can be used both indoors or outdoors for mechanical retention of the cable and to provide clamping of the armouring ensuring earth continuity.

Technical Details
Size:00 to 7Material:Brass BS 2874 CZ121 Pb3.
IP Rating:30Options Threads:Metric
Application:BWR Rotary Cone Cable Glands can be used indoors or outdoors, mechanical retention of the cable and to provide clamping of the armouring ensuring earth continuity.Finish:Natural Brass Finish, Nickel Finish.
Operating Temp.:Standard Seals -20° C to +80° C.
Accessories:Matching Accessories Available like PVC Shrouds , Lock Nuts & Earth Tag.

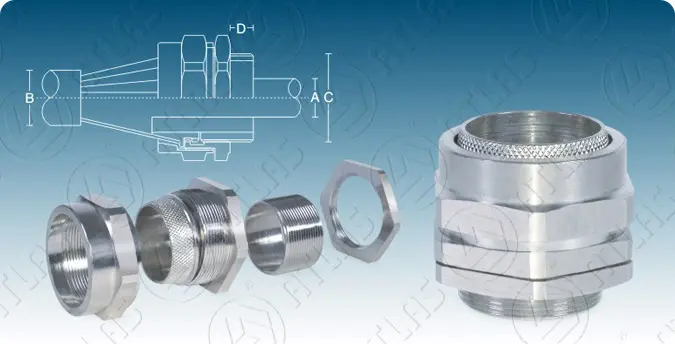

CODE NO.GLAND SIZETHREAD SIZE ‘C’
METRIC		MINIMUM LENGTH
OF THREAD ‘D’		CABLE RANGE
MAX ‘A’MAX ‘B’
AT-BR-00M201012.7016.00
AT-BR-11M201016.0019.00
AT-BR-22M201020.6026.50
AT-BR-33M251025.5033.00
AT-BR-44M321034.9040.50
AT-BR-55M401044.6051.00
AT-BR-66M501257.0067.00
AT-BR-77M631268.0079.50
