ALCO Type Cable Glands

  Home Atlas Metal Industries Pvt. Ltd.  /  Atcab Products  /  ATCAB Cable Glands and Brass Accessories for Industrial Use  /  ALCO Type Cable Glands

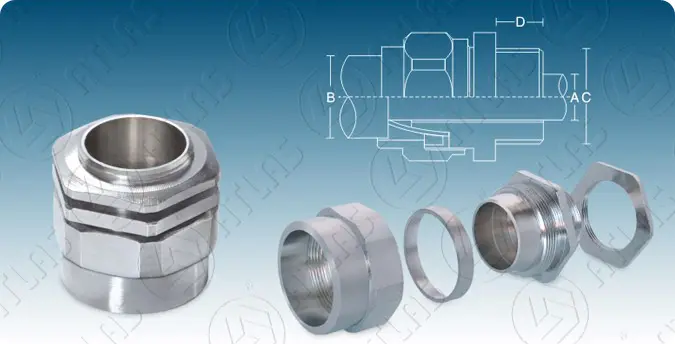

ALCO Type Cable Glands

The Alco Cable Gland is used for dry indoors with all types of SWA cables. The Brass Cable Gland provides mechanical cable retention and electrical wire continuity via armoured wire. Alco cable glands are commonly used in cable management systems to secure and protect cables.

Technical Details
Size:G-204 to G-755Material:Brass BS 2874 CZ121 Pb3.
Standard:BS 6121Options Threads:METRIC, NPT, BSP & PG.
IP Rating:IP30Finish:Material Brass Finish, Nickel Finish.
Application:Dry indoor, for use with all types of SWA Cable.Operating Temp.:-80° C to +600° C.
Function:Provide mechnical cable Retention & Ele. Wire continuity via Armoured Wire.Accessories:Matching Accessories available like PVC Shrouds, Lock Nuts & Earth Tag.
CODE NO.GLAND SIZETHREAD SIZE ‘C’MINIMUM LENGTH
OF THREAD ‘D’		CABLE RANGE
METRICMAX ‘A’MAX ‘B’
AT-AL-204G – 204M20912.5017.00
AT-AL-206G – 206M20914.5020.00
AT-AL-254G – 254M25916.0022.00
AT-AL-256G – 256M251018.5024.00
AT-AL-324G – 324M321023.5029.50
AT-AL-326G – 326M321027.5034.00
AT-AL-405G – 405M401333.5041.50
AT-AL-503G – 503M501339.5048.50
AT-AL-505G – 505M501344.5054.50
AT-AL-636G – 636M631456.0066.00
AT-AL-753G – 753M751564.0075.50
AT-AL-755G – 755M751568.0078.00
