PG Cable Glands with IP54

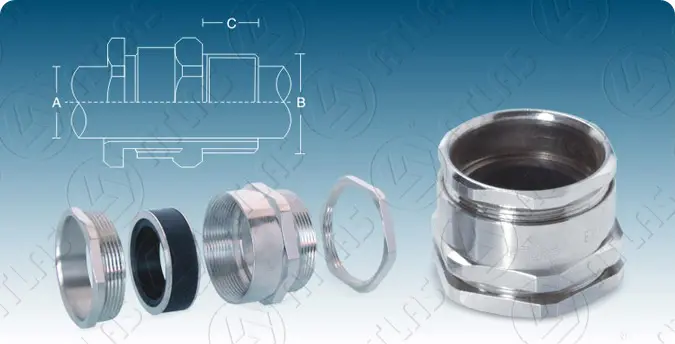

cable-gland-pg-with-ip54-PG-Cable-Glands-with-IP54

Technical Details

Size	:	PG 7 to PG 48 & M 12 to M 63		Thread	:	PG and also available in Metric Threads.
Application	:	Outdoor or Indoor for use all types of Unarmoured cable.		Seals	:	Solid & Grommet Rubber.
Application	:	Outdoor or Indoor for use all types of Unarmoured cable.		Operating Temp.	:	-20° C to +80° C.
Function	:	Provide for Seal on Outer Sheath of the Unarmoured Cable.		Accessories		Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement.
Ingress Protection	:	IP54
Material	:	Brass BS 2874 CZ121 Pb3
Finish	:	Brass Finish, Nickel Finish.

CODE NO.	GLAND SIZE		CABLE RANGE ‘A’		THREAD SIZE ‘B’		THREAD LENGTH ‘C’ (IN MM)
CODE NO.	PG	METRIC	MIN.	MAX.	PG	METRIC	THREAD LENGTH ‘C’ (IN MM)
AT-PG4-7	PG7	M12	4.00	6.00	PG7	M12	5.00
AT-PG4-9	PG9	M16	6.00	10.00	PG9	M16	6.00
AT-PG4-11	PG11	–	8.00	10.00	PG11	–	6.50
AT-PG4-13.5	PG13.5	M20	10.00	12.00	PG13.5	M20	7.10
AT-PG4-16	PG16	–	11.00	14.00	PG16	–	6.50
AT-PG4-21	PG21	M25	14.00	18.00	PG21	M25	7.10
AT-PG4-29	PG29	M32	18.00	25.00	PG29	M32	8.50
AT-PG4-36	PG36	M40	25.00	32.00	PG36	M40	10.00
AT-PG4-42	PG42	M50	30.00	38.00	PG42	M50	10.00
AT-PG4-48	PG48	M63	33.00	42.50	PG48	M63	10.00
