Aluminium Cable Glands

  Home Atlas Metal Industries Pvt. Ltd.  /  Atcab Products  /  ATCAB Cable Glands and Brass Accessories for Industrial Use  /  Aluminium Cable Glands

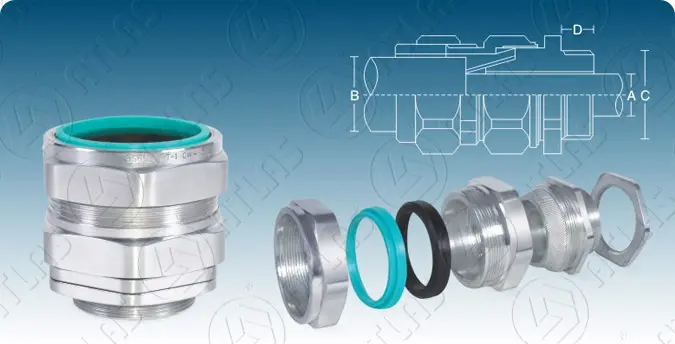

Aluminium Cable Glands

Aluminium Cable Glands are used indoors or outdoors with all types of SWA cables. An outer sheath and an armour-specific armour clamp for an armoured cable gland is provided by the CW type of cable gland. The armour clamp provides an electoral bond for the armoured cable and the gland.

Technical Details
Size:20mm to 90mm S & LMaterial:Aluminium
Standard:BS 6121Options Threads:METRIC, NPT, BSP & PG.
IP Rating:IP66Finish:Natural Aluminium Finish.
Application:For indoor or outdoor use with all types of SWA Cable.Operating Temp.:Standard seals -20° C to +80° C.
Function:CW type glands provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.Accessories:Matching Accessories available like PVC Shrouds, Lock Nuts & Earth Tag.
CODE NO.GLAND SIZETHREAD SIZE ‘C’MINIMUM LENGTH
OF THREAD ‘D’		CABLE RANGE
METRICNPTMAX ‘A’MAX ‘B’
AT-C3 AL-20SCW 20SM20½”1011.8015.80
AT-C3 AL-20LCW 20LM20½”1014.0020.80
AT-C3 AL-25SCW 25SM253/4″1018.0024.00
AT-C3 AL-25LCW 25LM253/4″1020.0027.20
AT-C3 AL-32SCW 32SM321″1024.5031.00
AT-C3 AL-32LCW 32LM321″1026.3033.50
AT-C3 AL-40SCW 40SM401¼”1530.4038.50
AT-C3 AL-40LCW 40LM401¼”1532.2040.00
AT-C3 AL-50SCW 50SM501½”1538.2046.30
AT-C3 AL-50LCW 50LM502″1544.0052.60
AT-C3 A-63SCW 63SM632″1550.0059.00
AT-C3 AL-63LCW 63LM632½”1556.0065.30
AT-C3 AL-75SCW 75SM752½”1562.0071.60
AT-C3 AL-75LCW 75LM753″1568.0078.00
AT-C3 AL-90SCW 90SM903″2084.5096.00
AT-C3 AL-90LBW 90LM903″2084.50102.00
