CW 3 PT Type Cable Glands

  Home Atlas Metal Industries Pvt. Ltd.  /  Atcab Products  /  ATCAB Cable Glands and Brass Accessories for Industrial Use  /  CW 3 PT Type Cable Glands

CW 3 PT Type Cable Glands

Technical Details
Size : 20mm to 90mm S & L Options Threads : METRIC, NPT, BSP & PG.
Standard : BS 6121 Finish : Natural Brass Finish, Nickel Finish.
IP Rating : IP66 Operating Temp. : Standard seals -20° C to +80° C.
Application : For indoor or outdoor use with all types of SWA Cable. Accessories : Matching Accessories available like PVC Shrouds, Lock Nuts & Earth Tag.

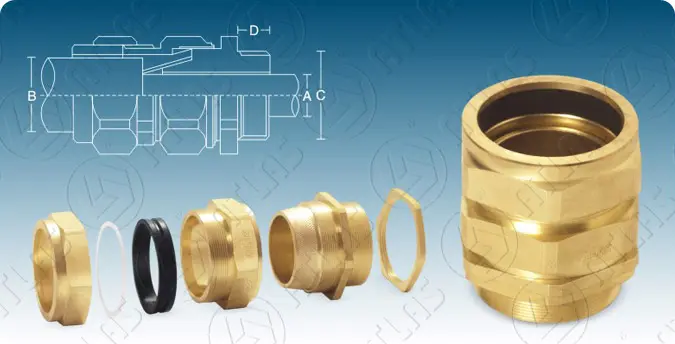

Function : CW type glands provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland.
CODE NO. GLAND SIZE THREAD SIZE ‘C’ MINIMUM LENGTH
OF THREAD ‘D’		 CABLE RANGE ‘A’
METRIC NPT MIN. MAX.
AT-C3-20S CW 20S M20 ½” 10 11.50 15.50
AT-C3-20L CW 20L M20 ½” 10 14.00 20.50
AT-C3-25S CW 25S M25 3/4″ 10 18.00 24.00
AT-C3-25L CW 25L M25 3/4″ 10 20.00 27.20
AT-C3-32S CW 32S M32 1″ 10 26.30 33.50
AT-C3-32L CW 32L M32 1″ 15 26.30 33.50
AT-C3-40S CW 40S M40 1¼” 15 31.50 39.50
AT-C3-40L CW 40L M40 1¼” 20 32.00 40.00
AT-C3-50S CW 50S M50 1½” 20 38.20 46.30
AT-C3-50L CW 50L M50 2″ 20 44.00 52.60
AT-C3-63S CW 63S M63 2″ 20 50.10 59.00
AT-C3-63L CW 63L M63 2½” 20 56.00 65.30
AT-C3-75S CW 75S M75 2½” 20 62.00 71.60
AT-C3-75L CW 75L M75 3″ 20 68.00 78.00
AT-C3-90S CW 90S M90 3″ 20 80.50 91.00
AT-C3-90L CW 90L M90 3″ 20 80.50 91.00
