IP68 PG Cable Glands are designed to provide a high level of protection against dust and water ingress. The cable glands provide a secure and reliable seal, offering protection to cables against external elements.
TECHNICAL DETAILS
Size : 20mm to 100 mm S & L
Standard : BS 6121, IEC 62444, EN 62444, EN50262
IP Rating : IP68
Application : For indoor or outdoor use with all types of SWA Cable.
Function : EIW type glands provide a seal on the inner sheath, a seal on the outersheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond between the armour cable and the gland.
Material : Brass BS 2874 CZ121 Pb3.
Optional Threads : Metric, NPT, BSP & PG.
Finish : Natural Brass Finish, Nickel Finish.
Operating Temp. : Standard seals -200 C to +800 C.
Accessories : Lock Nut, Earth Tag, IP Nylon, Washer, Serrated Washer, PVC / LSF Shroud.

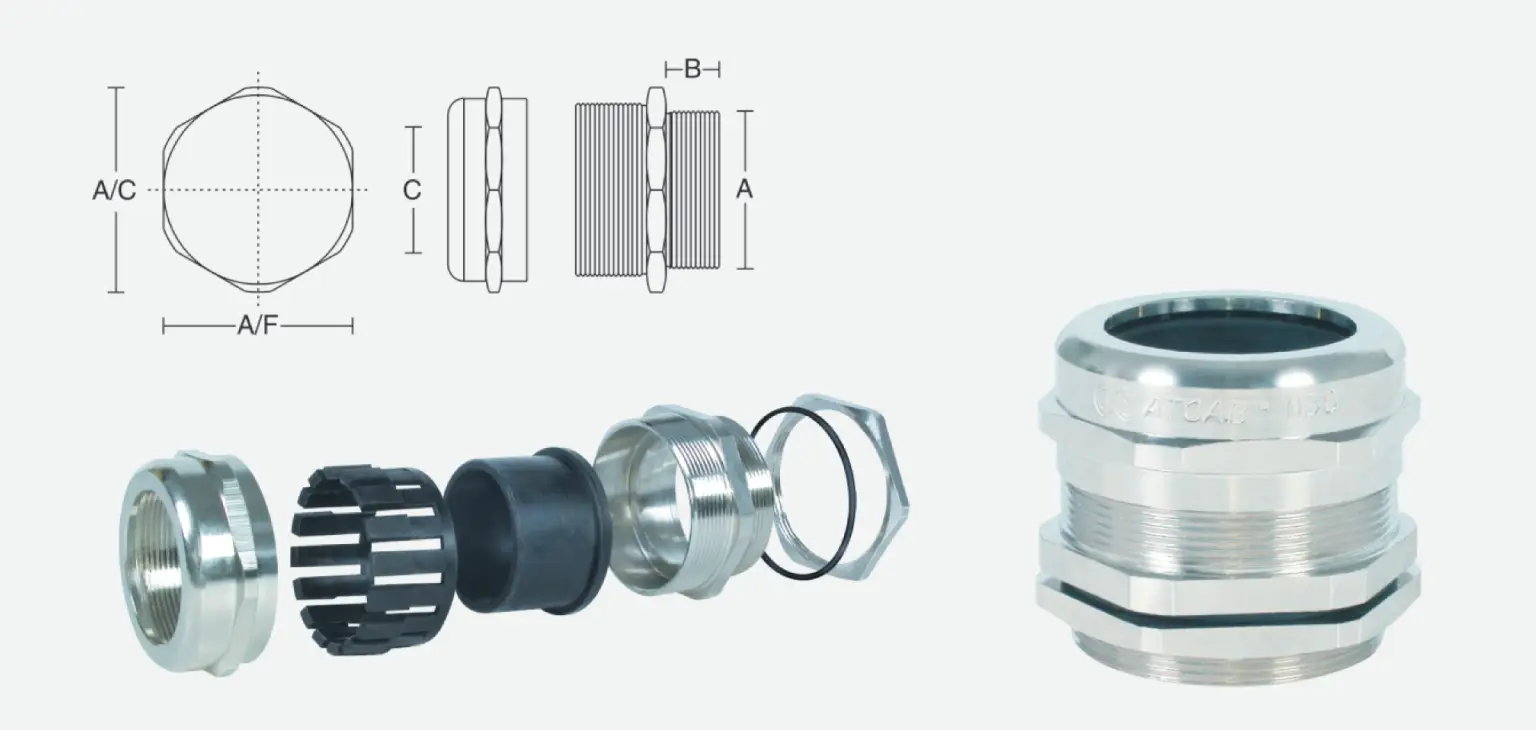

| CODE No. | THREAD SIZE (A) |
ENTRY THREAD LENGTH (B) |
C |
A / F |
A / C |
"CABLE CLAMPING RANGE Ø (MIN - MAX) MM" |
TIGHTENING TORQUE IN NM |
INSTALLATION TORQUE IN NM |
IMPACT TEST CATEGORY |
|---|---|---|---|---|---|---|---|---|---|
| AT-CEP-7 | PG 7 | 6.00 | 7.00 | 14.00 | 15.50 | 3 - 6.5 | 0.10 | 6.25 | 3.00 |
| AT-CEP-7-1 | PG 7 | 6.00 | 7.00 | 14.00 | 15.50 | 2 - 5 | 0.10 | 6.25 | 3.00 |
| AT-CEP-9 | PG 9 | 7.00 | 8.50 | 17.00 | 19.00 | 4 - 8 | 0.10 | 6.25 | 3.00 |
| AT-CEP-9-1 | PG 9 | 7.00 | 8.50 | 17.00 | 19.00 | 2 - 6 | 0.10 | 6.25 | 3.00 |
| AT-CEP-11 | PG 11 | 7.00 | 10.50 | 20.00 | 22.00 | 5 - 10 | 0.15 | 6.25 | 3.00 |
| AT-CEP-11-1 | PG 11 | 7.00 | 10.50 | 20.00 | 22.00 | 3 - 7 | 0.10 | 6.25 | 3.00 |
| AT-CEP-13 | PG 13.5 | 7.00 | 12.50 | 22.00 | 24.50 | 6 - 12 | 0.35 | 6.25 | 3.00 |
| AT-CEP-13-1 | PG 13.5 | 7.00 | 12.50 | 22.00 | 24.50 | 5 - 9 | 0.15 | 6.25 | 3.00 |
| AT-CEP-16 | PG 16 | 6.50 | 14.50 | 24.00 | 26.50 | 10 - 14 | 0.35 | 7.50 | 3.00 |
| AT-CEP-16-1 | PG 16 | 6.50 | 14.50 | 24.00 | 26.50 | 7 - 12 | 0.35 | 7.50 | 3.00 |
| AT-CEP-21 | PG 21 | 8.00 | 18.50 | 31.00 | 34.00 | 13 - 18 | 0.60 | 10.00 | 4.00 |
| AT-CEP-21-1 | PG 21 | 8.00 | 18.50 | 31.00 | 34.00 | 9 - 16 | 0.35 | 10.00 | 4.00 |
| AT-CEP-29 | PG 29 | 9.00 | 25.50 | 40.00 | 44.50 | 18 - 25 | 0.80 | 10.00 | 4.00 |
| AT-CEP-29-1 | PG 29 | 9.00 | 25.50 | 40.00 | 44.50 | 13 - 20 | 0.60 | 10.00 | 4.00 |
| AT-CEP-36 | PG 36 | 10.00 | 33.00 | 50.00 | 55.00 | 25 - 32 | 0.90 | 10.00 | 5.00 |
| AT-CEP-36-1 | PG 36 | 10.00 | 33.00 | 50.00 | 55.00 | 20 - 26 | 0.80 | 10.00 | 5.00 |
| AT-CEP-42 | PG 42 | 11.00 | 39.00 | 55.00 | 60.00 | 32 - 38 | 0.90 | 10.00 | 5.00 |
| AT-CEP-42-1 | PG 42 | 11.00 | 39.00 | 55.00 | 60.00 | 25 - 31 | 0.80 | 10.00 | 5.00 |
| AT-CEP-48 | PG 48 | 13.00 | 46.00 | 65.00 | 70.50 | 37 - 44 | 1.00 | 10.00 | 5.00 |
| AT-CEP-48-1 | PG 48 | 13.00 | 46.00 | 65.00 | 70.50 | 29 - 35 | 0.90 | 10.00 | 5.00 |
Also available in kit packing as per the specification. All dimensions are in millimeter
